Cortizo doors

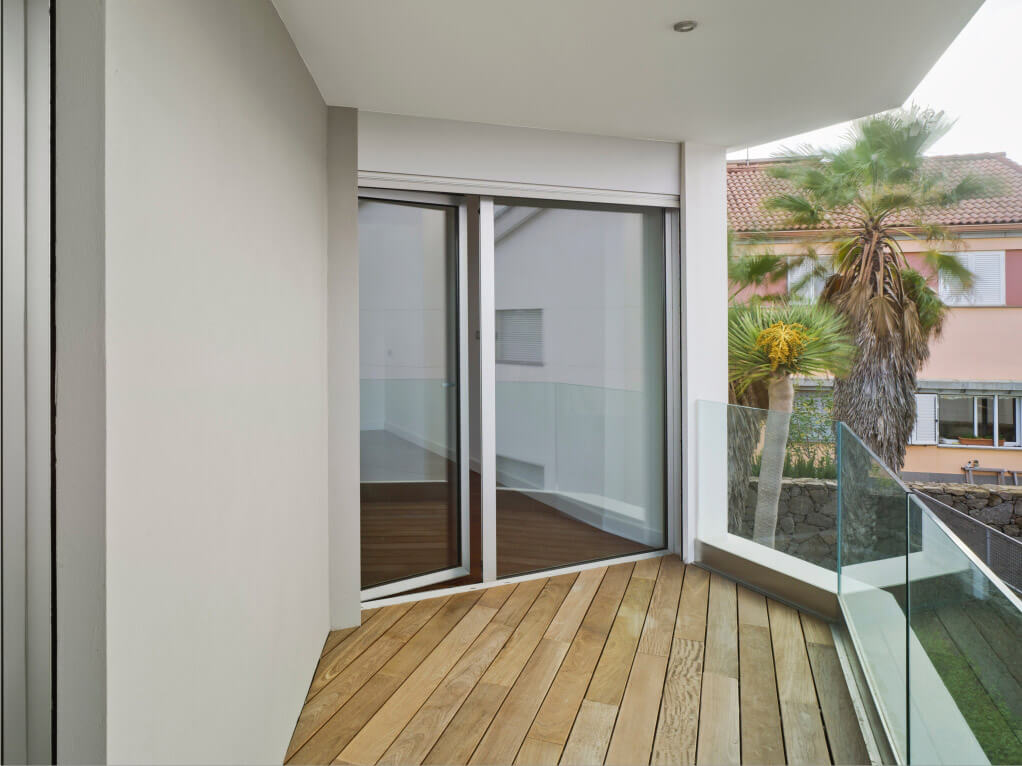

Millennium Plus 80 Door

Coplanar door entry system with straight lines and frame depth of 80 mm

It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations

Transmittance from 0.8 W/m²K

Maximum glazing: 64 mm

Possibility of hidden hinges

Maximum glazing thickness
64 mm

Opening possibilities
Inward opening:
Side hung 1 or 2 sashes.
Outward opening:
Side hung 1 or 2 sashes
Automatic opening:
Internal and external hinged single sash

Sections
Frame – 80 mm / Sash – 80 mm

Profile thickness
Door 2.0 mm

Polyamide strip length
34 mm

Maximum dimensions/sash
Width (L) = 1,800 mm
Height (H) = 3,000 mm
Door

Width (L) = 1,500 mm
Height (H) = 3,000 mm


Hidden hinges door

Maximum weight/sash
220 kg

Please consult regarding maximum weight and dimensions according to types

 Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

 Transmittance
Uw from 0.8 (W/m²K)
Please consult typology, dimensions and glazing

Maximum acoustic insulation
Rw = 40 dB

Air permeability
(EN 12207) CLASS 4

Water tightness
(EN 12208) CLASS 6A

 Wind resistance
(EN 12210) CLASS C4

Door test reference 1.20 x 2.30 m. 1 sash

Resistance to mild impact
(EN 13049) CLASS 5 (max)
Test on door reference 1.80 x 2.20 m. 2 sashes. Laminated glass 3+3

 Resistance to repeated openings and closings
(EN 1191) 1,000,000 cycles
Test on door reference 2.1 x 2.2 m. 2 sashes.

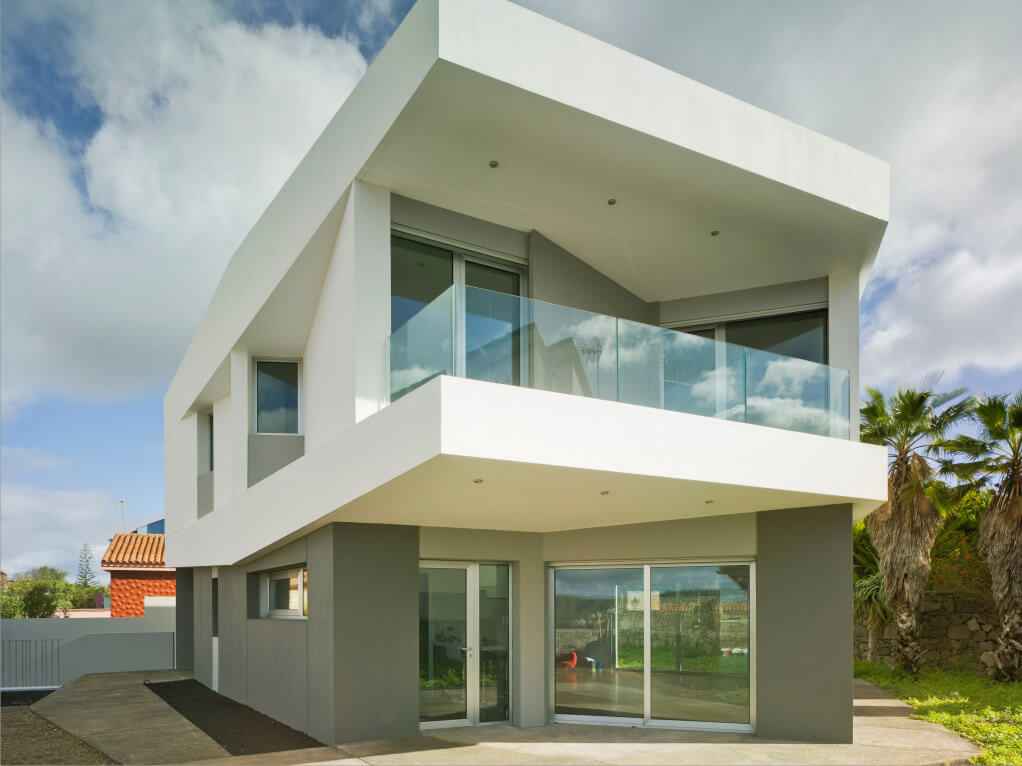

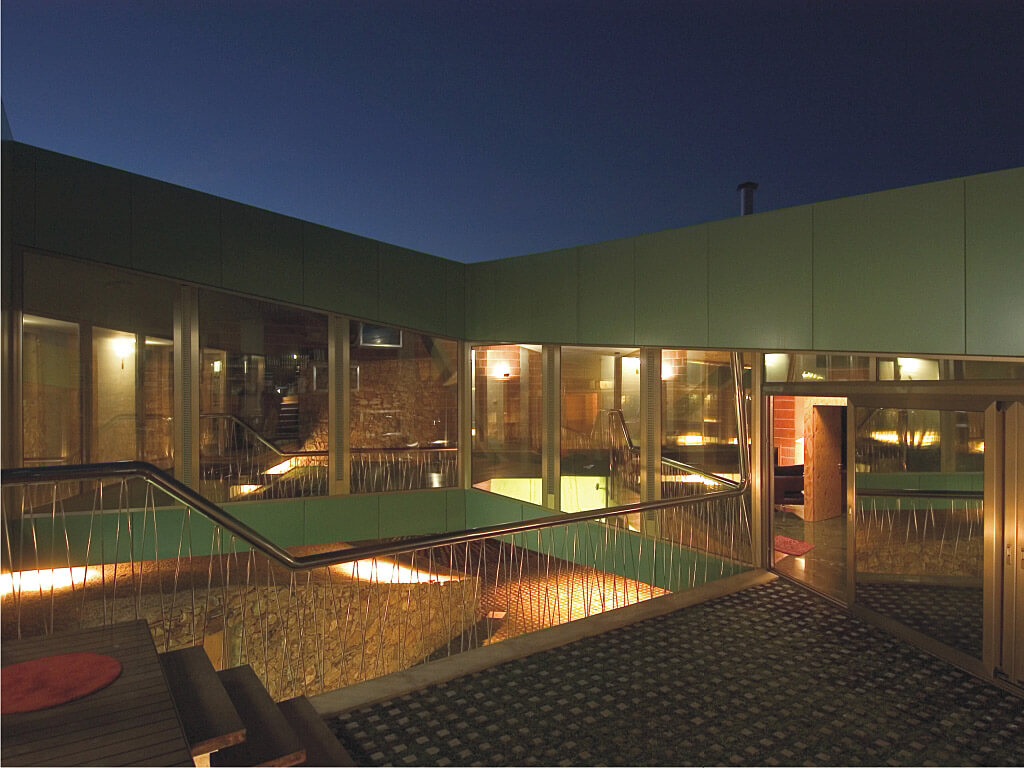

Examples of Millennium Plus 80 doors

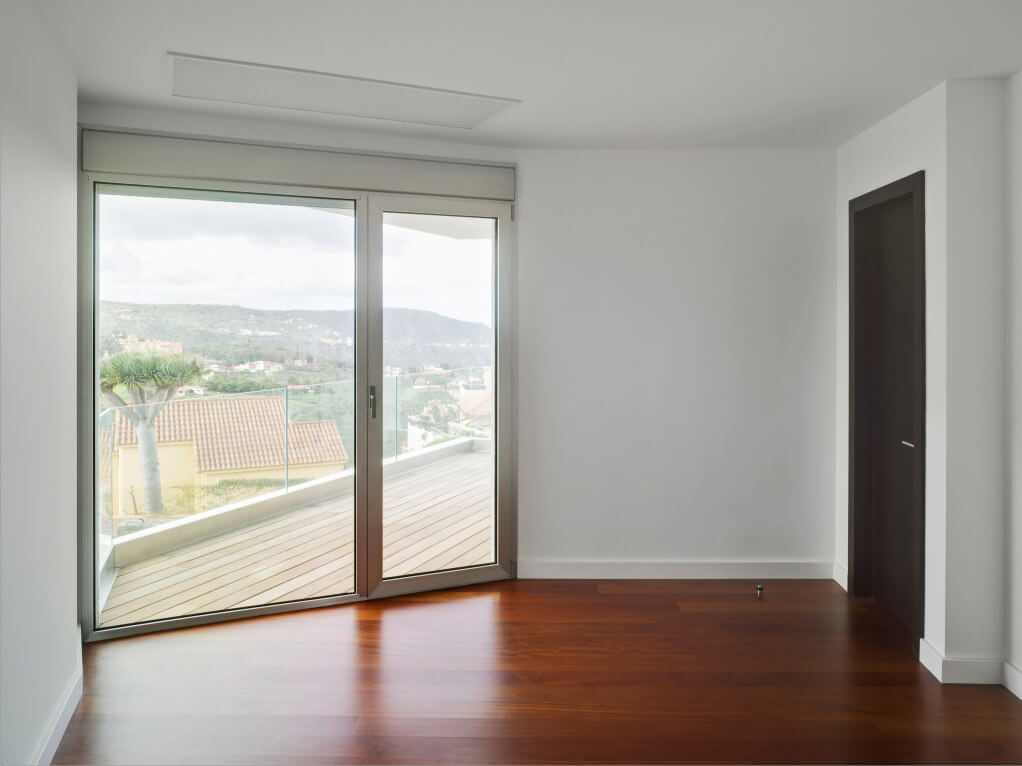

Millennium Plus Pivot Door

This new entrance door from CORTIZO answers the latest design trends . The system is designed to allow large pivot openings suitable for contemporary architectural projects, and it offers excellent thermal and acoustic performance along with minimalistic sightlines.

 Sightlines
Frame 80 mm
Sahs 80 mm


Opening possibilities
Pivoting


Panel
80 mm


Profile Thickness
Door 2.0 mm


Polyamide Strip Length
24 / 26 mm


Maximum Sash Dimensions
Width (L) 2100 mm (1700* + 400 mm)
Height (H) 3000 mm


Maximum Sash Weight
250 kg

Consult maximum weight and dimensions according to typologies
*Measure from the pivot axis

 Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

 Transmittance
UD ≥ 0.86 (W/m2K)


Air permeability
(EN 12207) Class 4


Water tightness
(EN 12208) Class 5A


 Wind resistance
(EN 12210) Class C5

Reference test 1,20 x 2,00 m / 1 Sash

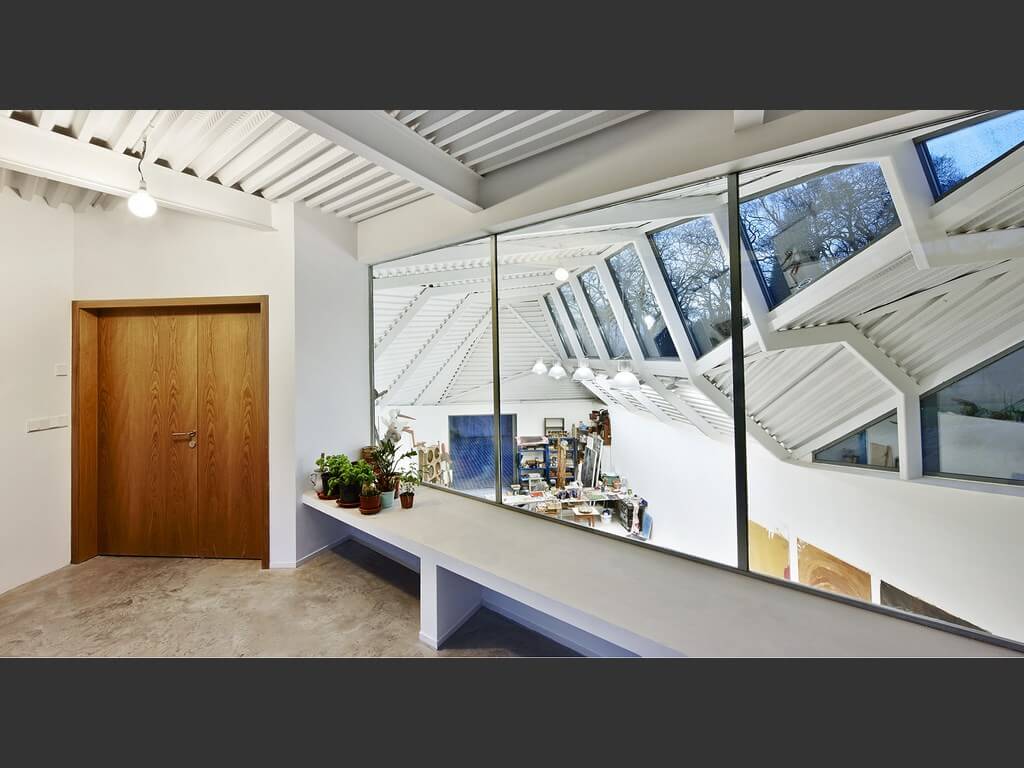

Examples of Millennium Plus Pivot doors

Bi-Fold

 Up to 14 sashes: inward and outward opening

 Possibility of either even or odd number of sashes

Option to embed the lower frame in the floor

Maximum glazing thickness
45 mm

Opening possibilities

Interior
Up to 14 sashes

Exterior
Up to 14 sashes
Possibility of corner sash at 90º without mullion

Sections
Frame – 73 mm / Sash – 73 mm

Profile thickness
Door 1.8 mm

Polyamide strip length
Frame 20 mm / Sash 30 mm

Maximum dimensions/sash
Width (L) = 1,200 mm
Height (H) = 3,000 mm

Maximum weight/sash
120 kg

Please consult regarding maximum weight and dimensions for other opening types

Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

Transmittance
Uw from 1.1 (W/m²K)
Please consult typology, dimensions and glazing


Air permeability
(EN 12207) CLASS 4

Water tightness
(EN 12208) CLASS 9A

Wind resistance
(EN 12210) CLASS A3

Reference test 2.70 x 2.53 m. 3 sashes

Security Test
(PAS 24): Passed

Reference test 2,701 x 2,517 mm. 3 sashes.
Set-up: 330

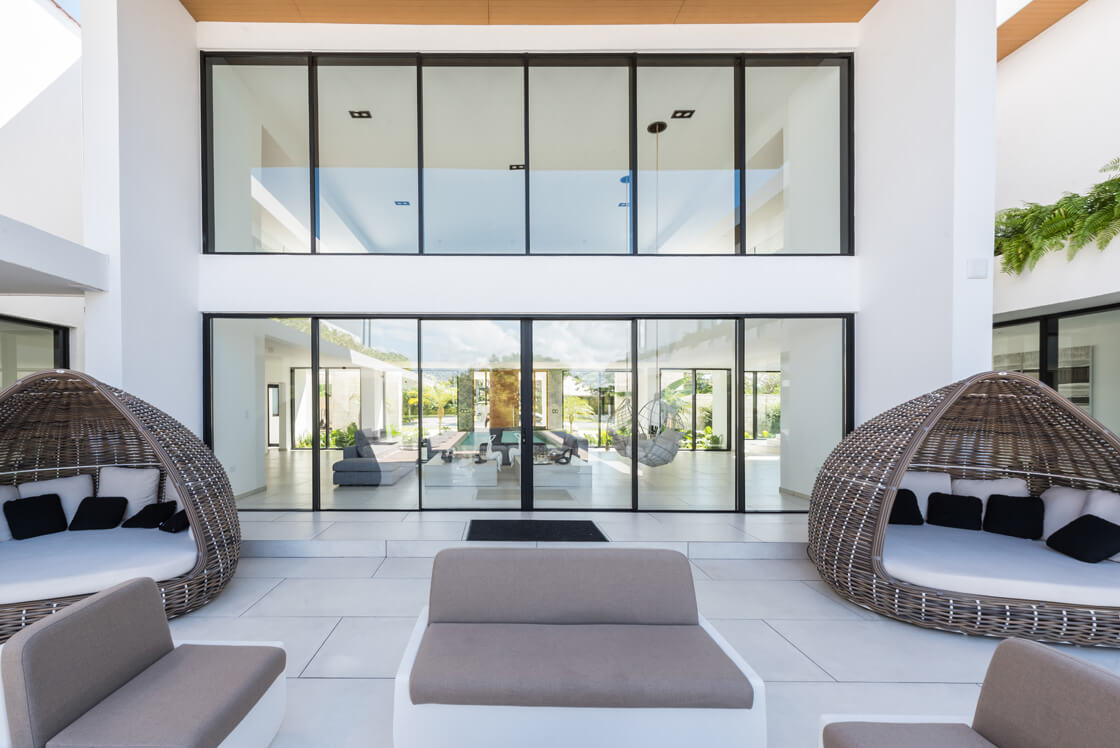

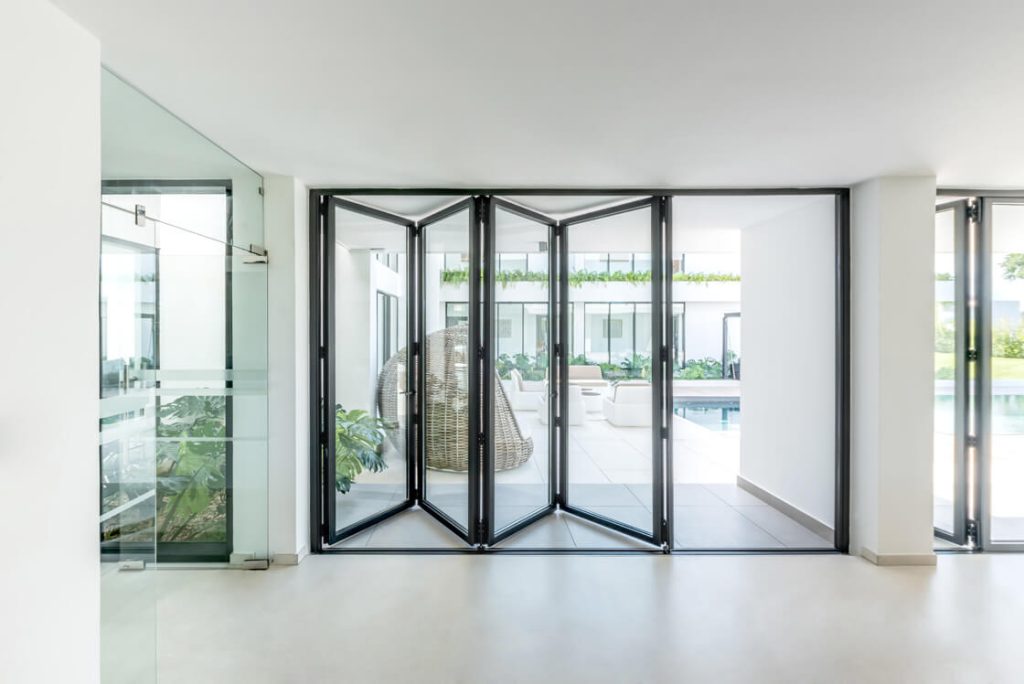

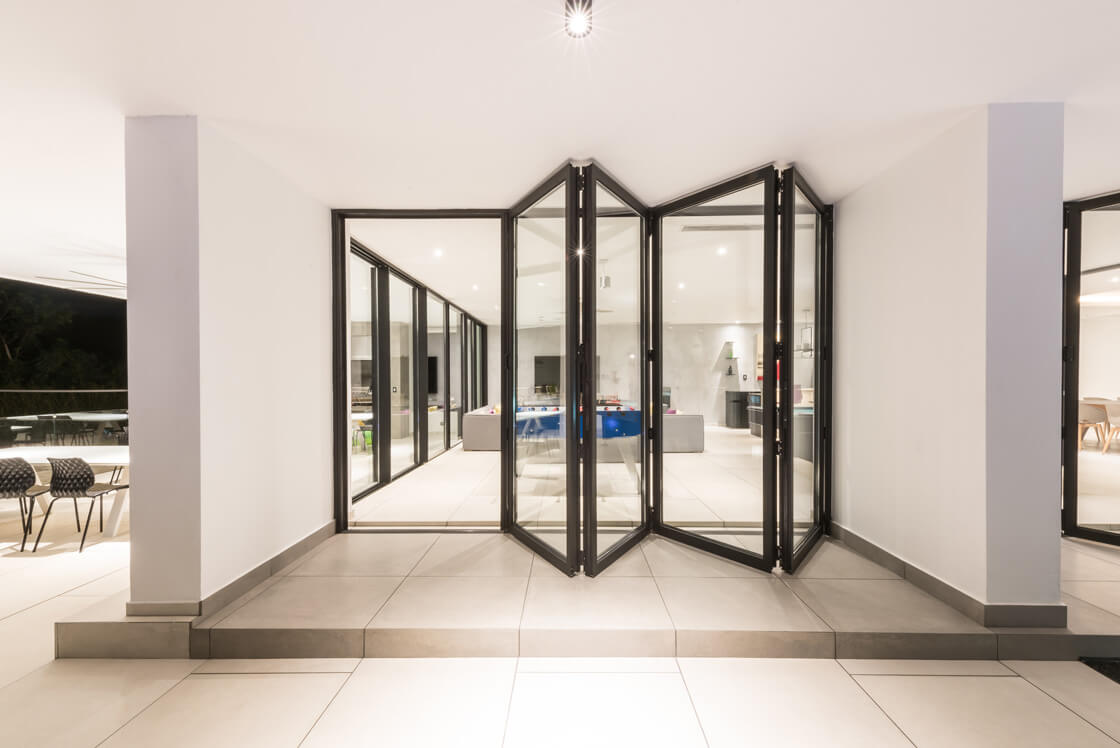

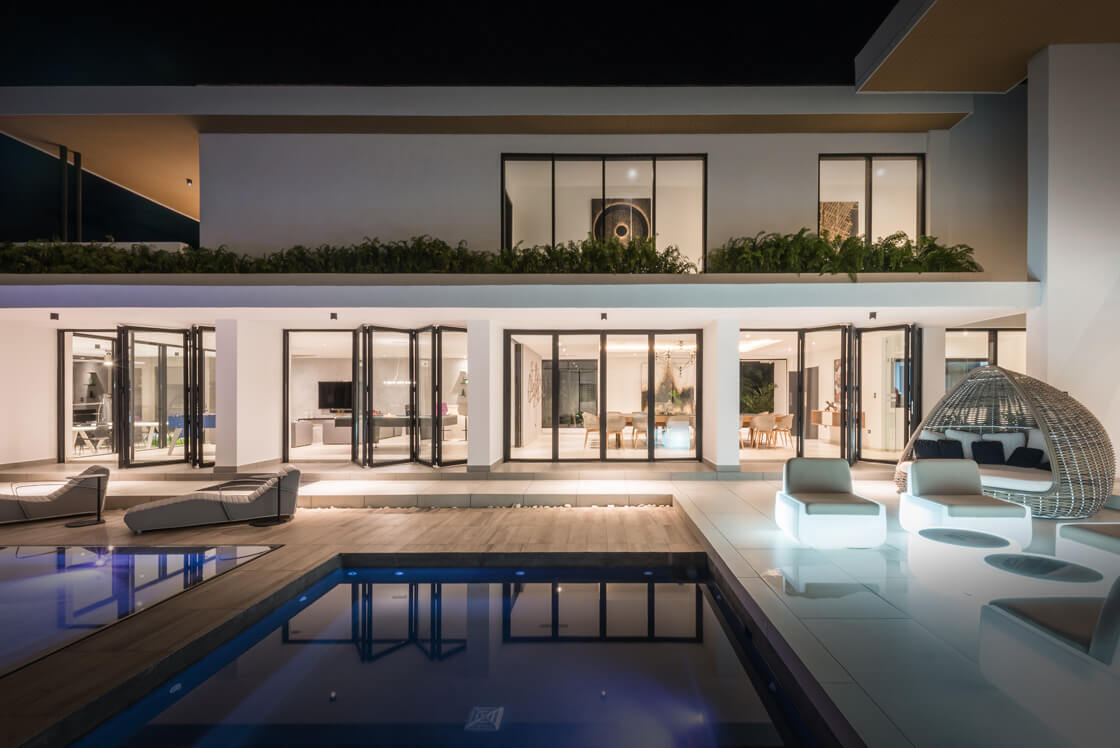

Examples of Bi-Fold doors
