Schüco sliding doors

Schüco Folding Sliding System AS FD 90.HI

With extremely slim face widths and excellent thermal insulation, the Schüco AS FD 90.HI folding sliding system really stands out.

An extensive selection of opening and locking types allow individual design with a high degree of planning freedom.

3 different threshold types, including a flat threshold with great rollover capacity, make the system adaptable to many installation situations.

An optional side-hung door enables quick passage, while an integrated magnetic retaining catch ensures secure opening and closing of the folding sliding unit.

The system now offers a higher level of security, meeting burglar resistance class RC 2.

The improved sealing concept with two continuous gasket levels offers greater watertightness and air permeability values for all opening types.

SYSTEM / MATERIAL – Aluminium

Min. vent height – 660 mm
Max. vent height – 3500 mm
Min. vent width – 600 mm
Max. vent width – 1500 mm
Vent frame face width – 41 mm
Min. face width of interlocking section – 90 mm
Min. system basic depth – 90 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window –  (≥)0.8 W/(m²·K)
Max. sound reduction index –  Rwp47 dB(A)
Watertightness – E 750
​Burglar resistance – Up to RC 2, PAS 24
Operating type – manual

Examples of Schüco Folding Sliding System AS FD 90.HI

Schüco Folding Sliding System AS FD 75

With extremely slim face widths and flush-fitted outer and vent frames, the Schüco AS FD 75 folding sliding system really stands out.

A comprehensive selection of opening and locking types makes individual designs possible with maximum planning freedom.

3 different threshold types, including a flat threshold with great rollover capacity, make the system adaptable to many installation situations.

An optional side-hung door enables quick passage, while an integrated magnetic retaining catch ensures secure opening and closing of the folding sliding unit.

The system now offers a higher level of security, meeting burglar resistance class RC 2.

The improved sealing concept with two continuous gasket levels offers greater watertightness and air permeability values for all opening types.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 660 mm
Max. vent height – 3000 mm
Min. vent width – 500 mm
Max. vent width – 1500 mm
Vent frame face width – 41 mm
Min. face width of interlocking section – 90 mm
Min. system basic depth – 75 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window (≥) – 1.1 W/(m²·K)
Max. sound reduction index Rwp – 47 dB(A)
Watertightness – E 750​
Burglar resistance – Up to RC 2, PAS 24
Operating type – manual

Examples of Schüco Folding Sliding System AS FD 75

Schüco Folding Sliding System ASS 80 FD.HI

Highly thermally insulated bi-fold system with a wide selection of types and outstanding weathertightness

With narrow face widths and a wide range of types which meet all the requirements of current thermal insulation standards, as well as outstanding weathertightness, the highly thermally insulated Schüco ASS 80 FD.HI (Folding Door High Insulated) bi-fold system is ideally suited for use in outdoor areas.

Attractive opening types such as the 90° corner including a flat, thermally insulated threshold for barrier-free access offer a variety of design options for the visually appealing system.

Additionally, the bi-fold system can be designed with a magnetic retaining catch with an elegant design and matching flat door handle.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 500 mm
Max. vent height – 3000 mm
Min. vent width – 500 mm
Max. vent width – 1200 mm
Vent frame face width – 50 mm
Min. face width of interlocking section – 112 mm
Min. system basic depth – 80 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window – (≥)1.3 W/(m²·K)
Max. sound reduction index Rwp – 47 dB(A)
Watertightness – Class 8A
Burglar resistance – Up to RC 2
Operating type – manual

Examples of Schüco Folding Sliding System ASS 80 FD.HI

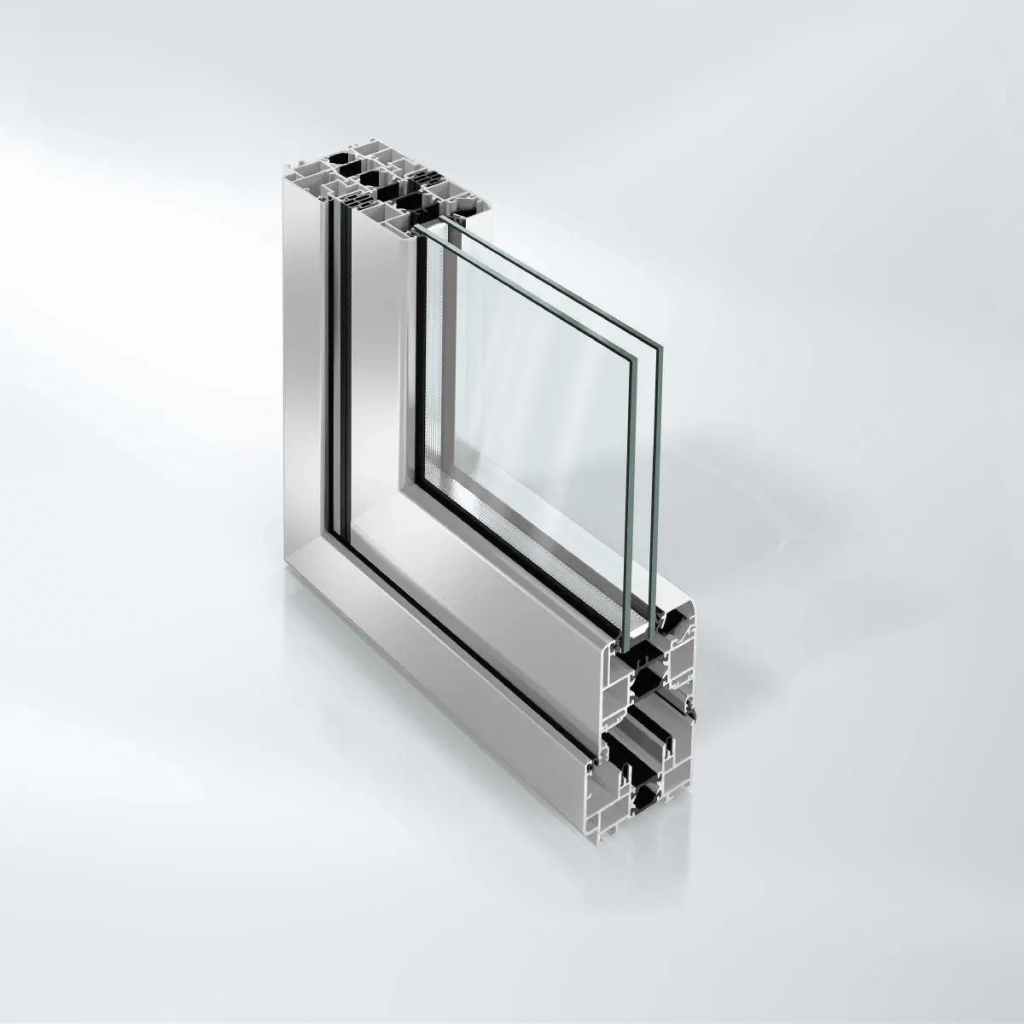

Schüco Folding Sliding System ASS 70 FD

Thermally insulated bi-fold system with large selection of types, quiet running and outstanding weathertightness

The thermally insulated Schüco ASS 70 FD (Folding Door) bi-fold system impresses with narrow face widths and offers a wide range of types with outstanding weathertightness for use in outdoor areas.

The visually appealing system opens up a variety of design options thanks to attractive opening types, such as the 90° corner including a flat, thermally insulated threshold for barrier-free access.

The magnetic retaining catch with an elegant design and matching flat door handle is available as an additional design option.

The flexible and quiet vent stacks can be folded to the right, left, inwards or outwards as required.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 500 mm
Max. vent height – 3000 mm
Min. vent width – 500 mm
Max. vent width – 1500 mm
Vent frame face width – 54 mm
Min. face width of interlocking section -120 mm
Min. system basic depth – 70 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window – (≥)2.4 W/(m²·K)
Max. sound reduction index –  Rwp44 dB(A)
Watertightness – Class 9A
Burglar resistance – Up to RC 2
Operating type – manual

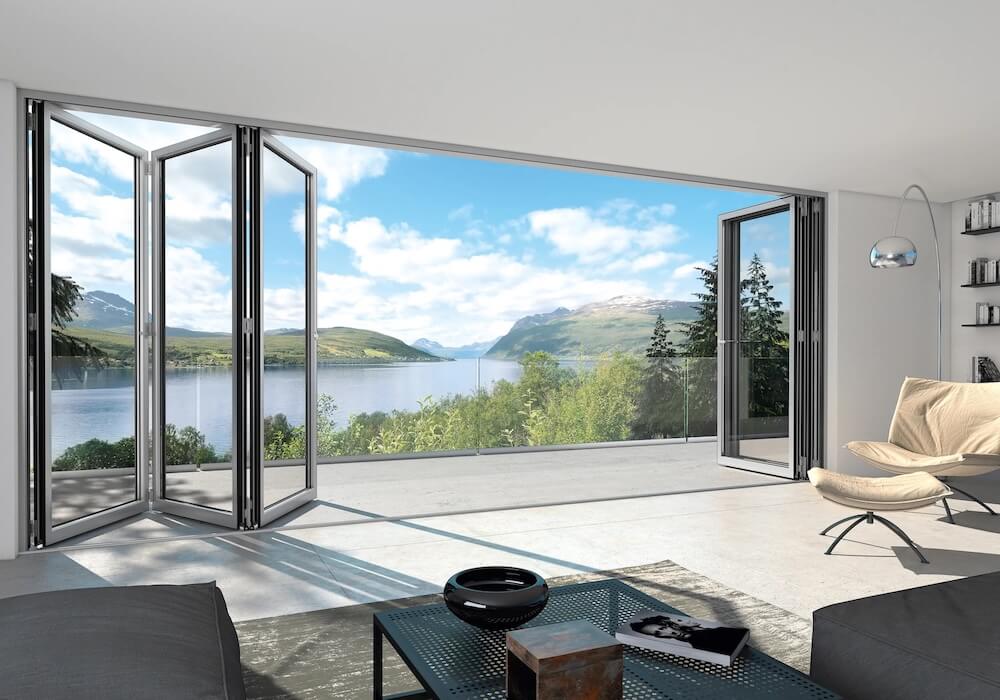

Examples of Schüco Folding Sliding System ASS 70 FD

Schüco Sliding System ASE 60 Perfect

Reliable complete solution for every building opening.

The best of both worlds for perfect window installation: With the “Perfect” system, the cooperation between the family-owned companies Schüco and GS Stemeseder combines technical innovations and distinct customer benefits – and solves known interface problems at the trade boundaries in the wall opening with technically and visually convincing precision. Precision!

The “Perfect” system developed and patented by GS Stemeseder will in future merge with the AWS 75.SI⁺ Perfect window system and the ASE 60/80.HI Perfect sliding system from Schüco to form a fully integrated unit. The result offers you significant advantages in the construction process from a single source: windows, glazing, solar shading and insect screens, window sills and thresholds can be combined in a completely new way.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 1334 mm
Max. vent height – 3000 mm
Min. vent width – 630 mm
Max. vent width – 3500 mm
Vent frame face width – 82 mm
Min. face width of interlocking section – 40 mm
Min. system basic depth – 140 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window (≥) – 0.99 W/(m²·K)
Max. sound reduction index –  Rwp45 dB(A)
Watertightness – E 900​
Burglar resistance – Up to RC 2
Operating type – manual

Examples of Schüco Sliding System ASE 60 Perfect

Schüco Sliding and Lift-and-Slide System ASE 80.HI

The latest generation of highly thermally insulated sliding and lift-and-slide systems

Barrier-free, very easy to use and a slimline appearance – the high-insulation Schüco ASE 80.HI (High Insulated) sliding and lift-and-slide system offers elegant design solutions for sustainable, user-oriented architecture to passive house level.

The modular and scalable aluminium profile system captivates with the reduced DesignLine interlock section of the vents, which allows the frame units to visually recede into the background.

The level threshold allows the inside and outside areas to transition into one another harmoniously and without barriers.

Concealed fittings components reinforce the puristic and high-quality design, even when open.

A further benefit of the new generation of sliding and lift-and-slide systems is its high flexibility in terms of configuration to suit any user. Options such as the Schüco SmartStop and Schüco SmartClose security and comfort technology ensure the best handling possible.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 1334 mm
Max. vent height – 3500 mm
Min. vent width – 630 mm
Max. vent width – 3500 mm
Vent frame face width – 82 mm
Min. face width of interlocking section – 40 mm
Min. system basic depth – 180 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window (≥) – 0.99 W/(m²·K)
Max. sound reduction index Rwp – 43 dB(A)
Watertightness – E 900
​Burglar resistance – Up to RC 2
Operating type – manual

Examples of Schüco Sliding and Lift-and-Slide System ASE 80.HI

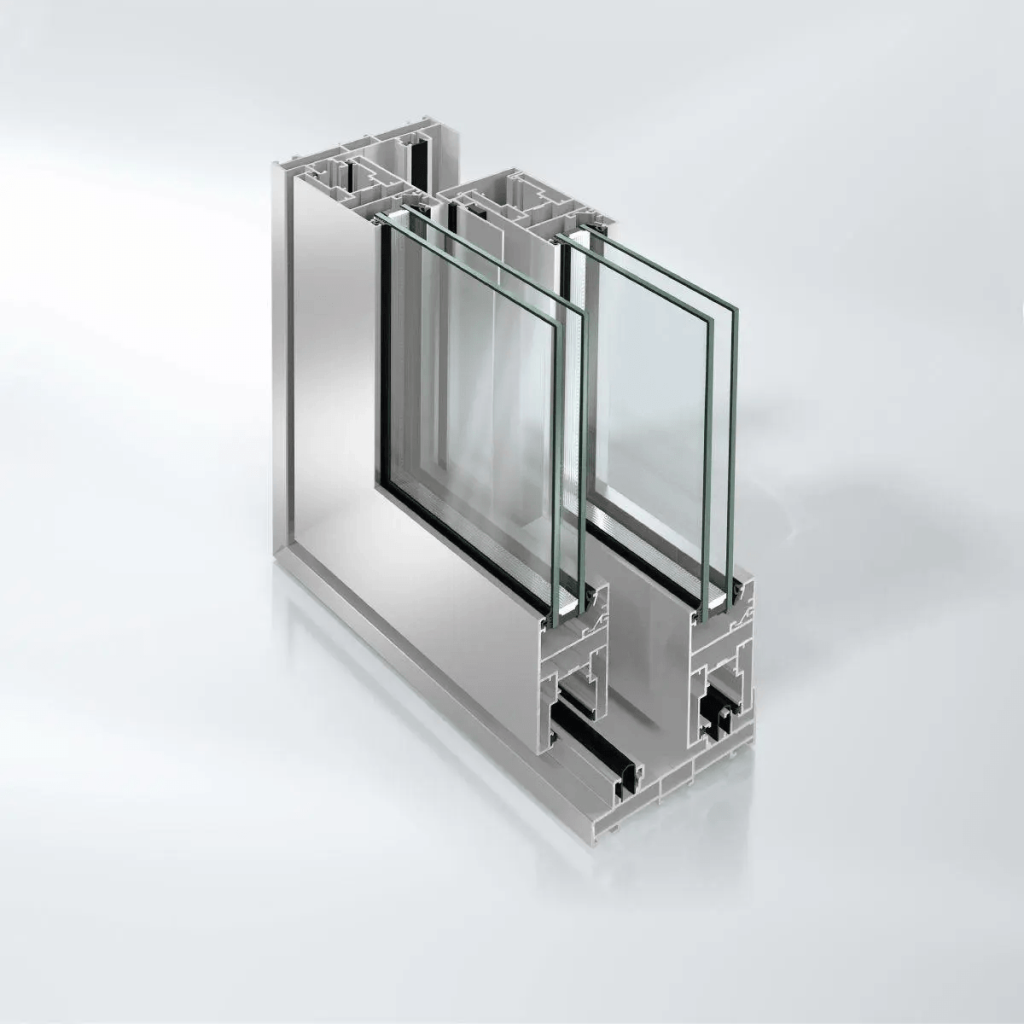

Schüco Sliding and Lift-and-Slide System ASS 50.NI

Sophistication for quality and insulation

Non-insulated sliding and lift-and-slide system with narrow face widths for large-scale glazing

For indoor areas or regions with low thermal insulation requirements, the Schüco ASS 50.NI (Non-Insulated) sliding and lift-and-slide system offers optimum solutions with high transparency. With its narrow profile face widths, the non-insulated aluminium construction enables large glass areas to be created permitting maximum light penetration, all whilst requiring a minimum amount of space and generating almost no noise when the sliding units move.

A variety of fitting and handle combinations and the wide range of opening types offer architects and specifiers a broad spectrum of design options.

Optimised system components and fabrication steps guarantee easy fabrication and efficient installation, and complete the system range.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 818 mm
Max. vent height – 3000 mm
Min. vent width – 700 mm
Max. vent width – 3000 mm
Vent frame face width – 89 mm
Min. face width of interlocking section – 99 mm
Min. system basic depth – 120 mm
Uw value of window (≥) – 6,4 W/(m²·K)
Watertightness – Class 7B
Burglar resistance – Up to RC 2
Operating type – manual

Examples of Schüco Sliding and Lift-and-Slide System ASS 50.NI

Schüco Panorama Design sliding system AS AL 75

Now with barrier-free, zero-level threshold

Gaskets with air in the Schüco AS AL 75 Panorama Design sliding system – the air-lux gasket concept

Through its partnership with air-lux, Schüco is taking a new approach with the gaskets in its AS AL 75 Panorama Design sliding system. The patented, inflatable gasket concept guarantees 100% impermeability for the sliding system, while ensuring that it remains easy to operate. This also applies to large sliding units and severe weather conditions.

Once the gasket is activated and inflated, it presses against the sliding profile and closes the gap between the sliding unit and the fixed frame so that it is completely weathertight. When open (gasket inactive), the gasket is rolled in and the sliding vent can be moved with minimum effort.

In contrast to systems with brush gaskets, there is therefore no compromise on weathertightness or ease of operation.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 1500 mm
Max. vent height – 6000 mm
Min. vent width – 877 mm
Max. vent width – 8000 mm
Vent frame face width – 0 mm
Min. face width of interlocking section – 66 mm
Min. system basic depth – 173 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window (≥) – 0.83 W/(m²·K)
Max. sound reduction index – Rwp44 dB(A)
Watertightness – E 1500
Burglar resistance – Up to RC3
Operating type – electric, manual

Examples of Schüco Panorama Design sliding system AS AL 75

Schüco Panorama Design Sliding System AS PD 75.HI Performance Line

Schüco AS PD 75.HI – Offers individuality without complexity

The Schüco Panorama Design sliding door AS PD 75.HI brings together the features of multifunctionality and style in various product lines, without sacrificing their individuality. The technical performance features of all the lines are all at the highest level. Additional features such as the integration of sun shading mean that there is a wide choice of configurations for the Panorama Design sliding door. In addition to the standard opening types, the sliding units can be configured as desired and tailored to the requirements of the particular façade design.

SYSTEM / MATERIAL – Aluminium
Min. vent height – 1000 mm
Max. vent height – 3500 mm
Min. vent width – 1000 mm
Max. vent width – 3500 mm
Vent frame face width – 0 mm
Min. face width of interlocking section – 35 mm
Min. system basic depth – 218 mm
Barrier-free (≤) 20 mm – Yes
Uw value of window (≥) – 0.82 W/(m²·K)
Watertightness – E 1050
Burglar resistance – Up to RC3
Operating type – electric

Examples of Schüco Panorama Design Sliding System AS PD 75.HI Performance Line
