Reynaers doors

MasterLine 8

Crafted for masters

MasterLine 8 aluminium doors offer excellent levels of safety, thermal insulation, and stability. The high-quality door series can reach Passive House-levels of insulation, which makes it ideal for sustainable renovations and new-builds.

  • Our flagship product, robust & versatile
  • Excellent thermal and AWW performances
  • Highly competitive price-quality ratio

Performance

Energy

Thermal insulation – Uf –  1.3 W/m²K

Thermal insulation – Ud  – 0.98 W/m²K


Comfort

Air tightness Class – 4 (600Pa)
Water tightness Class – 7A (300Pa)
Wind load resistance – Class C3 (1200Pa)
Acoustics – Rw(C;Ctr) 43(-1;-4) dB
Opening & closing resistance – Class 8


Safety

Burglar resistance  – RC2 RC3 PAS 24
Impact resistance  – I5/E5
Fire resistance – EI₂ 30


Properties

Max. dimensions & weight

Min. height of vent  – 500 mm
Max. height of vent  – 3000 mm
Min. width of vent – 500 mm
Max. width of vent – 1400 mm
Max. weight of vent – 250 kg
Max. weight of fixed part – 250 kg
Max. weight of glass – 1200 kg


Sightlines

Min. frame width (inward opening) – 68.5 mm
Min. vent width (inward opening) – 78.5 mm
Min. frame-vent width (inward opening) – 153 mm
Min. frame width (outward opening) – 42.5 mm
Min. vent width (outward opening) – 104.5 mm
Min. frame-vent width (outward opening) – 153 mm
Min. width T-profile – 50 mm
Min. height treshold – 0 mm
Depth frame – 77 mm
Depth Vent – 77 mm
Depth frame-vent – 77 mm


Glazing

Rebate height – 27 mm
Glazing method – Dry glazing , Siliconized glazing, Internal glazing, Glazing bead
Min. glass thickness – frame/element –  4 mm
Max. glass thickness – frame/element – 58 mm
Min. glass thickness – vent – 4 mm
Max. glass thickness – vent  – 58 mm


Examples of Reynaers MasterLine 8 doors

Vision 7

Thermal Commercial Door

Introducing the third generation of high use entrance doors

Vision 7 is the latest evolution in the Vision range of commercial doors with anti-finger trap technology, making it suitable for a wide range of ground floor applications, including schools and leisure facilities, hospitals, shopping centres and offices.

  • High usage swing doors with anti finger trap
  • Slim visual width due to a narrow bulb radius of only 40mm
  • Achieves U-value as low as 1.1W/m2K

Performance

Energy

Thermal insulation – Uf – 1.7 W/m²K
Uw Dependencies :
  • Single Door (Standard Variant), Double Glazing 1.7W/m2K.
  • Single Door (Hi Variant), Double Glazing 1.4W/m2K.
  • Single Door (Standard Variant), Triple Glazing 1.4W/m2K.
  • Single Door (Hi Variant), Triple Glazing 1.1W/m2K.
Thermal insulation – Ud  – 1.1 W/m²K


Comfort

Air tightness – Class 2 (300Pa)


Safety

Burglar resistance – PAS 24


Properties

Max. dimensions & weight

Max. height of vent – 3000 mm
Max. width of vent – 1250 mm
Max. weight of vent  -120 kg


Sightlines

Min. frame-vent width (inward opening) – 88 mm
Depth frame – 100 mm
Depth Vent – 68 mm


Glazing

Min. glass thickness – vent – 28 mm
Max. glass thickness – vent – 50 mm

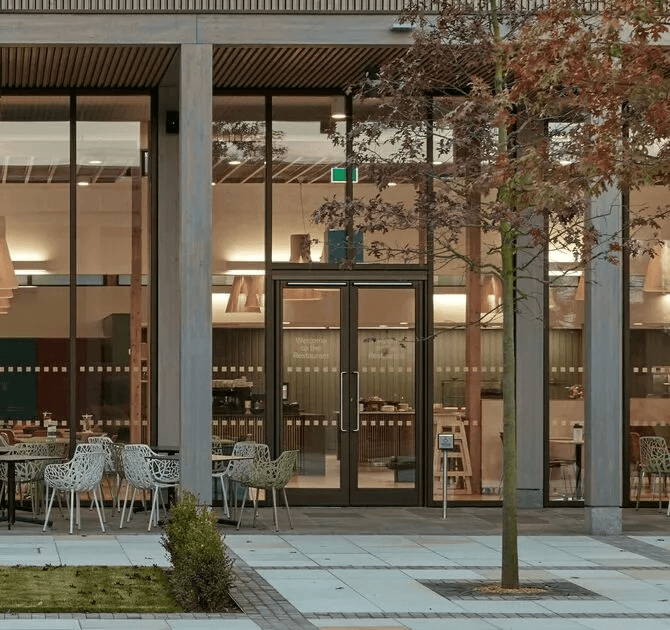

Examples of Reynaers Vision 7 doors

SlimLine 38

Light, Elegance and Comfort

SlimLine 38 is a highly insulated aluminium door system that combines ultimate comfort with minimalistic design. Its slender steel look with optional triple glazing is the perfect match for both new-builds and contemporary renovation projects.

  • Highly insulating steel look doors
  • Broad offer of styles and safety variants
  • Suits modern new-builds as well as renovations

Performance

Energy

Thermal insulation – Uf – 1.8 W/m²K
Thermal insulation – Ud – 1 W/m²K


Comfort

Air tightness – Class 2 (300Pa)
Water tightness – Class 5A (200Pa)
Wind load resistance – Class C3 (1200Pa)
Acoustics – Rw(C;Ctr) 45(-1;-5) dB
Opening & closing resistance – Class 6


Safety

Burglar resistance – RC2 PAS 24
Fire resistance – EW 30


Properties

Max. dimensions & weight

Max. height of vent – 3000 mm
Min. width of vent – 750 mm
Max. width of vent – 1400 mm
Max. weight of vent – 160 kg
Max. weight of glass – 300 kg


Sightlines

Min. frame width (inward opening) – 38.5 mm
Min. vent width (inward opening) – 23 mm
Min. frame-vent width (inward opening) – 72.5 mm
Min. frame width (outward opening) – 19 mm
Min. vent width (outward opening) – 60.5 mm
Min. frame-vent width (outward opening) – 86 mm
Min. width T-profile – 52 mm
Profile design slope – 24.2 degrees
Min. height treshold – 0 mm
Depth frame – 99 mm
Depth Vent – 86 mm
Depth frame-vent – 109 mm


Glazing

Rebate height – 13.5 mm
Glazing method – Dry glazing , Siliconized glazing, Internal glazing,  Glazing bead
Min. glass thickness – frame/element – 16 mm
Max. glass thickness – frame/element – 55 mm
Min. glass thickness – vent – 10 mm
Max. glass thickness – vent – 55 mm

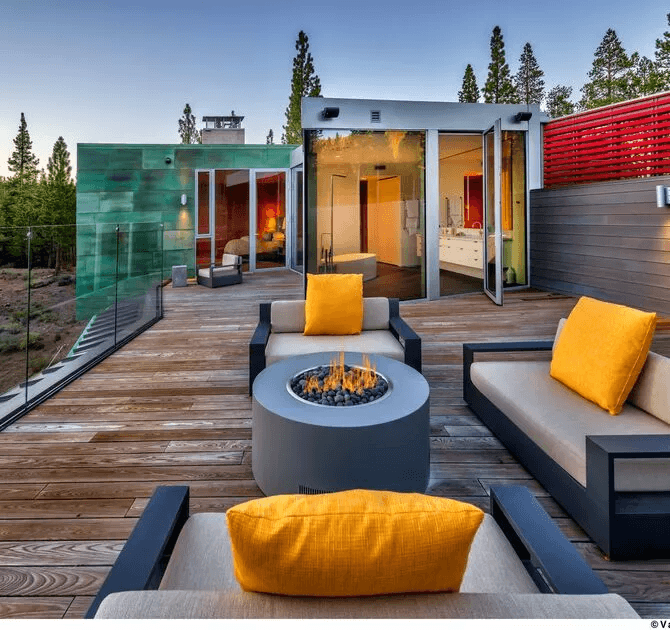

Examples of Reynaers SlimLine 38 doors

ConceptSystem 77

Optimised safety and comfort

MasterLine 10 aluminium doors are the perfect match for low-energy and passive building projects thanks to their sustainable design and excellent safety levels. The system’s patented technology ensures minimal draft and optimal thermal insulation.

  • Best value for money amongst passive house certified systems
  • One of our most sustainable solutions
  • Several design options available

Insulation

Thermal insulation (Best) – Uf – 1.8 W/m²K
Thermal insulation – Uw – 1.3 W/m²K
Uw Dependencies –  Frame-vent: Ug 1.0W/m²K, psi: 0.032W/mK @1.23×1.48m (102mm sight line), 36mm glass

Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E900 (900Pa)
Wind load resistance – Class C5 (2000Pa)
Acoustics – Rw(C;Ctr) 42(-2;-4) dB dB
Durability – Class 3 (20000 cycles)

Safety & Security

Burglar resistance – PAS 24 – RC2 – RC3
Operating Forces Class – Class 1


Properties
Max. dimensions & weight

Min. height of vent – 600 mm
Max. height of vent – 2800 mm
Min. width of vent – 450 mm
Max. width of vent – 1700 mm
Max. weight of vent – 170 kg

Sightlines

Min. frame width (inward opening) – 51 mm
Min. vent width (inward opening) – 33 mm
Min. frame-vent width (inward opening) – 89 mm
Min. vent-vent width (inward opening) – 144 mm
Min. frame width (outward opening) – 17.5 mm
Min. vent width (outward opening) – 76 mm
Min. frame-vent width (outward opening) – 93.5 mm
Min. vent-vent width (outward opening) – 183 mm
Min. width transom profile – 76 mm
Depth frame – 68 mm
Depth Vent – 77 mm
Depth frame-vent – 77 mm

Glazing

Rebate height – 25 mm
Glazing method – Dry glazing , Siliconized glazing, Internal glazing, Glazing bead
Min. glass thickness – frame/element – 4 mm
Max. glass thickness – frame/element – 52 mm
Min. glass thickness – vent – 4 mm
Max. glass thickness – vent – 63 mm

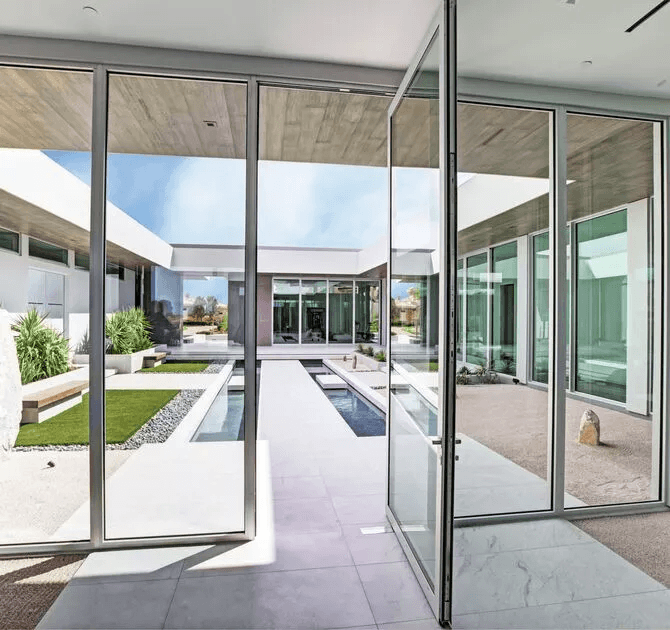

Examples of Reynaers ConceptSystem 77 doors

MasterLine 10

No compromise

SlimLine 38 is a highly insulated aluminium door system that combines ultimate comfort with minimalistic design. Its slender steel look with optional triple glazing is the perfect match for both new-builds and contemporary renovation projects.

  • Highly insulating steel look doors
  • Broad offer of styles and safety variants
  • Suits modern new-builds as well as renovations

Performance

Energy

Thermal insulation – Uf – 0.96 W/m²K
Thermal insulation – Ud – 0.81 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class 9A (600Pa)
Wind load resistance – Class C3 (1200Pa)
Acoustics – Rw(C;Ctr) 40 (-1;-5) dB
Opening & closing resistance – Class 8


Properties

Max. dimensions & weight

Max. height of vent – 3000 mm
Min. width of vent – 500 mm
Max. width of vent – 1400 mm
Max. weight of vent – 250 kg
Max. weight of glass – 1200 kg


Sightlines

Min. frame width (inward opening) – 83.5 mm
Min. vent width (inward opening) – 71.5 mm
Min. frame-vent width (inward opening) – 162 mm
Min. frame width (outward opening) – 27 mm
Min. vent width (outward opening)  -110.5 mm
Min. frame-vent width (outward opening) – 162 mm
Min. width T-profile – 87 mm
Min. height treshold – 0 mm
Depth frame – 97 mm
Depth Vent – 97 mm
Depth frame-vent – 97 mm
Max. depth transom – 97 mm


Glazing

Rebate height – 27 mm
Glazing method – Dry glazing, Siliconized glazing,  Internal glazing, Glazing bead
Min. glass thickness – frame/element – 20 mm
Max. glass thickness – frame/element – 78 mm
Min. glass thickness – vent – 20 mm
Max. glass thickness – vent – 78 mm

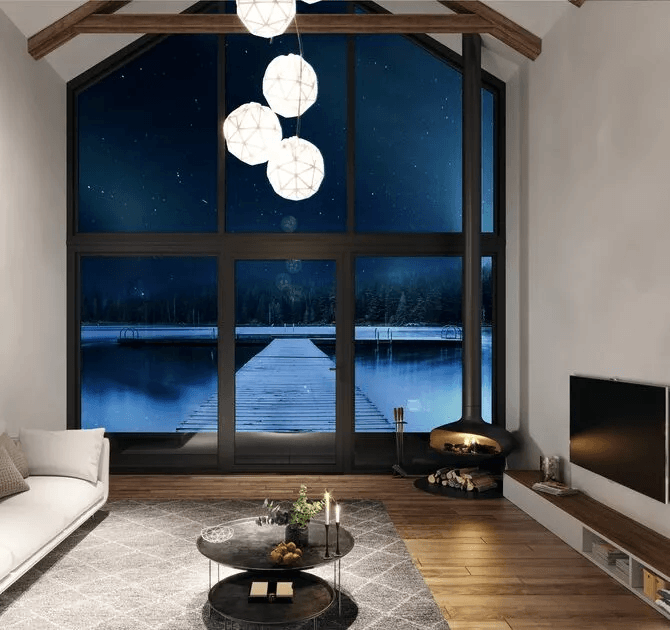

Examples of Reynaers MasterLine 10 doors

More about Reynaers doors

Reynaers Aluminium doors are robust, highly secure and fully customisable to create high-quality entrances and exits where you need it most. Choose from a broad range of functional variants, which are compatible with our window systems, and enjoy unlimited design freedom in your new-build or renovation project.

Product options

You can personalize Reynaers doors with the following options:

  • Anti-finger trap – Decreased risk in public places
  • Low Threshold – Easy access, cleaner look.
  • Zero Threshold – Entrance without boundaries, even with continuous flooring.
  • Panic – Tried and tested, for peace of mind.
  • Access Control – Making your home smart and connected.
  • Concealed Hinges – The details are the design, concealed hinges are the finishing touch.
  • Softclose – Combines safety and comfort.
  • Gutter – Better water performance, without adding thresholds.
  • Concealed Drainage – No more plastic cover caps, enjoy those clean lines.
