Citi Homes Windows

Reynaers windows

SlimLine 38

Light, Elegance and Comfort

Its slender and user-friendly design makes the SlimLine 38 high-insulation system the perfect fit for any contemporary project. The durable aluminium windows and doors offer unlimited design freedom thanks to their multiple minimalistic variants.

  • Steel look doors in a variety of styles
  • Suits modern new-builds as well as renovations
  • High thermal insulation

Performance

Energy

Thermal insulation – Uf – 1.9 W/m²K
Thermal insulation – Uw – 0.96 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class 9A (600Pa)
Wind load resistance – Class C4 (1600Pa)
Acoustics – Rw(C;Ctr)45(-1,-5) dB
Opening & closing resistance – Class 3


Safety

Burglar resistance – PAS 24RC2


Properties

Max. dimensions & weight

Min. height of vent – 600 mm
Max. height of vent – 2800 mm
Min. width of vent – 450 mm
Max. width of vent – 1200 mm
Max. weight of vent – 170 kg


Sightlines

Min. frame width (inward opening) – 33.5 mm
Min. vent width (inward opening) – 23 mm
Min. frame-vent width (inward opening) – 67 mm
Min. frame width (outward opening) – 29 mm
Min. vent width (outward opening) – 60.5 mm
Min. frame-vent width (outward opening) – 80 mm
Min. width T-profile – 48 mm
Profile design slope – 24.2 degrees
Depth frame – 99 mm
Depth Vent – 86 mm
Depth frame-vent – 99 mm


Glazing

Rebate height – 13.5 mm
Glazing method – Dry glazing, Siliconized glazing, Internal glazing, Glazing bead
Min. glass thickness – frame/element16 mm
Max. glass thickness – frame/element – 55 mm
Min. glass thickness – vent – 16 mm
Max. glass thickness – vent – 55 mm

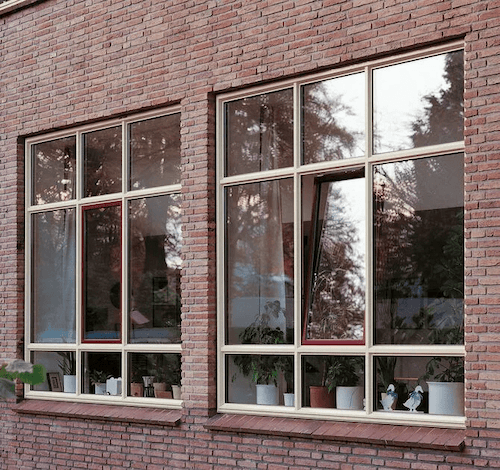

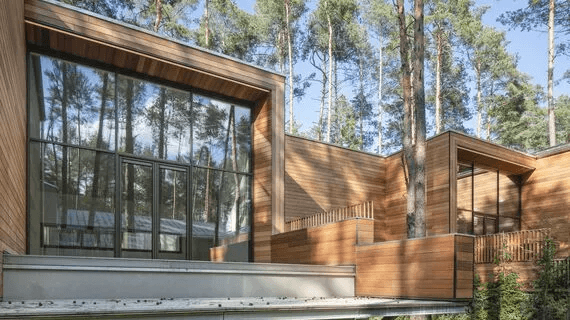

Examples of Reynaers SlimLine38 windows

ConceptSystem 77

Optimised safety and comfort

ConceptSystem 77 is a versatile window system that complements almost any building project thanks to its many design options. Compatible with different burglar resistance levels, the aluminium windows offers both a safe and stylish solution.

  • High thermal insulation
  • Broad design and functional possibilities
  • Available in extreme safety variants including bulletproof
  • Well balanced price-quality-feature mix

Performance

Energy

Thermal insulation – Uf – 1.8 W/m²K
Thermal insulation – Uw – 1.3 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E900 (900Pa)
Wind load resistance – Class C5 (2000Pa)
Acoustics – Rw(C;Ctr)42(-2; -4) dB
Opening & closing resistance – Class 3


Safety

Burglar resistance – PAS 24RC2RC3
Fire resistance – EI₁ 30EI₂ 30EI₂ 60EW 30
Bullet resistance – FB4FSGKalashnikov

Properties

Max. dimensions & weight

Min. height of vent – 600 mm
Max. height of vent – 2800 mm
Min. width of vent – 450 mm
Max. width of vent – 1200 mm
Max. weight of vent – 170 kg


Sightlines

Min. frame width (inward opening) – 51 mm
Min. vent width (inward opening) – 33 mm
Min. frame-vent width (inward opening) – 89 mm
Min. frame width (outward opening) – 17.5 mm
Min. vent width (outward opening) – 76 mm
Min. frame-vent width (outward opening) – 93.5 mm
Min. width T-profile – 76 mm
Depth frame – 68 mm
Depth Vent – 77 mm
Depth frame-vent – 77 mm


Glazing

Rebate height – 25 mm
Glazing method – Dry glazing, Siliconized glazing, Internal glazing, External glazing, Glazing bead
Min. glass thickness – frame/element – 4 mm
Max. glass thickness – frame/element – 52 mm
Min. glass thickness – vent – 4 mm
Max. glass thickness – vent – 63 mm

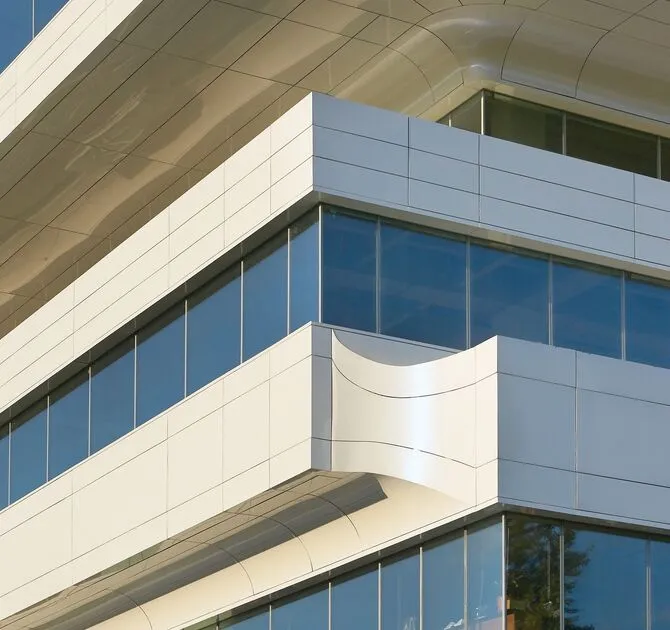

Examples of Reynaers ConceptSystem 77 windows

MasterLine 8

Crafted for masters

MasterLine 8 is a high-quality window system that links countless design options to best-in-class performance and unrivalled production speed. This next generation of aluminium windows is available in three insulation levels to match any project demands.

  • Our flagship product, with a wide field of applicability
  • Excellent thermal and AWW performances
  • Highly competitive price-quality ratio

Performance

Energy

Thermal insulation – Uf – 1 W/m²K
Thermal insulation – Uw – 0.88 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E900 (900Pa)
Wind load resistance – Class C4 (1600Pa)
Acoustics – Rw(C;Ctr)TUTI: 46(0;-3) dB DC: 44(-2;-4) dB
Opening & closing resistance – Class 1


Safety

Burglar resistance – RC2RC3PAS 24
Impact resistance – I5/E5

Properties

Max. dimensions & weight

Min. height of vent – 600 mm
Max. height of vent – 2800 mm
Min. width of vent – 450 mm
Max. width of vent – 1700 mm
Max. weight of vent – 300 kg
Max. weight of glass – 1200 kg


Sightlines

Min. frame width (inward opening) – 53 mm
Min. vent width (inward opening) – 37 mm
Min. frame-vent width (inward opening) – 97 mm
Min. frame width (outward opening) – 20 mm
Min. vent width (outward opening) – 118 mm
Min. frame-vent width (outward opening) – 138 mm
Min. width T-profile – 50 mm
Depth frame – 77 mm
Depth Vent – 87 mm
Depth frame-vent – 87 mm


Glazing

Rebate height – 27 mm
Glazing method – Dry glazing, Siliconized glazing, Internal glazing, External glazing, Glazing bead
Min. glass thickness – frame/element – 4 mm
Max. glass thickness – frame/element – 62 mm
Min. glass thickness – vent – 13 mm
Max. glass thickness – vent – 72 mm

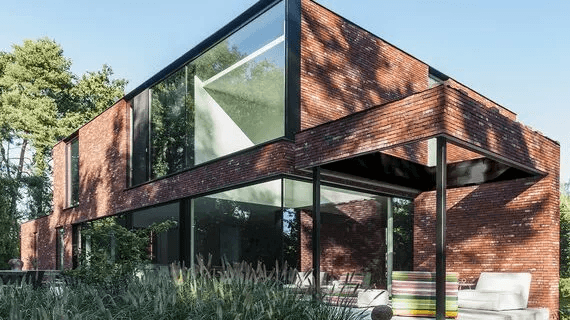

Examples of Reynaers MasterLine windows

SlimLine 68

Excellence in comfort

SlimLine 68 outward-opening windows are known for their ultra-slim yet steady aluminium profiles. The well-balanced solution is perfect for renovation, retaining the original daylight, but increasing weather resistance and insulation.

  • Ultra slim sightlines in outward opening
  • High level of comfort with excellent acoustic, thermal and weather sealing performances
  • Safe and secure with SBD and PAS24 rating

Performance

Energy

Thermal insulation – Uf – 2.4 W/m²K
Thermal insulation – Uw – 1.1 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E1200 (1200Pa)
Wind load resistance – Class C5 (2000Pa)
Acoustics – Rw(C;Ctr)47(-2;-7) dB
Opening & closing resistance – Class 3


Safety

Burglar resistance – PAS 24


Properties

Max. dimensions & weight

Min. height of vent – 300 mm
Max. height of vent – 1500 mm
Min. width of vent – 500 mm
Max. width of vent – 1300 mm
Max. weight of vent – 50 kg


Sightlines

Min. frame width (outward opening) – 15 mm
Min. vent width (outward opening) – 50 mm
Min. frame-vent width (outward opening) – 65 mm
Min. width T-profile – 50 mm
Profile design slope – 25 degrees
Depth frame – 78 mm
Depth Vent – 68 mm
Depth frame-vent – 78 mm


Glazing

Rebate height – 18 mm
Glazing method – Dry glazing, Internal glazing, Glazing bead
Min. glass thickness – frame/element – 16 mm
Max. glass thickness – frame/element – 43 mm
Min. glass thickness – vent – 26 mm
Max. glass thickness – vent – 43 mm

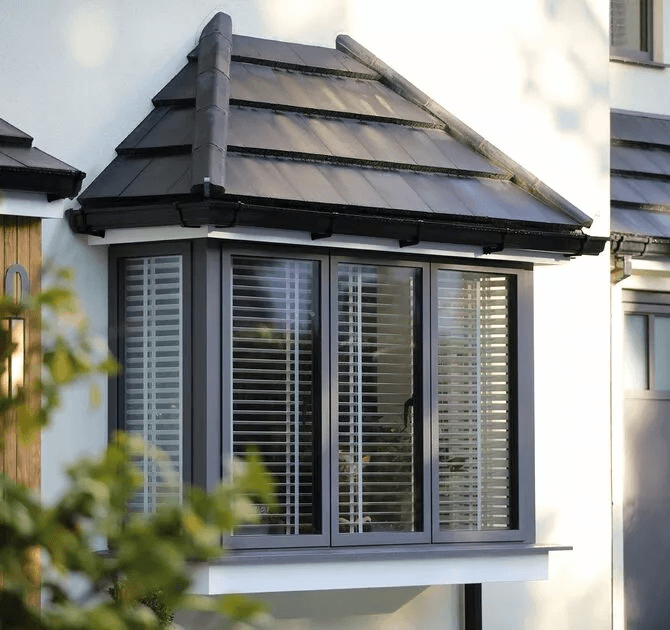

Examples of Reynaers ConceptSystem 77 windows

More about Reynaers windows

No better choice for your next project than our versatile aluminium windows. Optimal functionality meets excellent design, safety and energy efficiency in these trustworthy systems. Combine your desired opening type with one of our many profile designs, such as passive-energy or burglar-proof variants, and find your ideal building solution.

Product options

You can personalize Reynaers windows with the following options:

  • Glass Corner

Glass to glass connection without profiles obstructing the view

  • Motorised

Comfortable to use, even remotely.

  • Concealed Hinges

The details are the design, concealed hinges are the finishing touch.

  • Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

  • Flyscreen

Enjoy cool summer evenings, without losing sleep.

  • Balustrade

Safety can equal beauty.
