Schüco windows

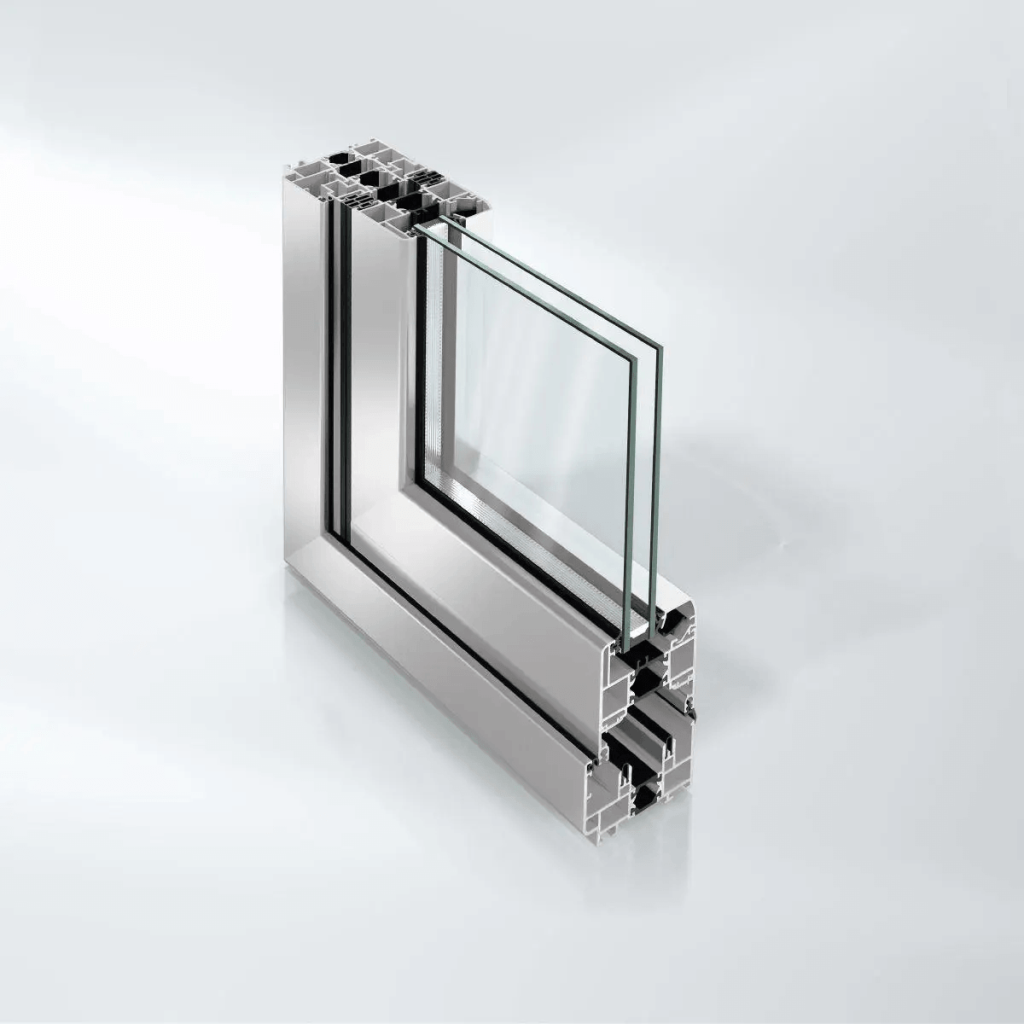

Schüco AWS 70 SC

The slimline outward-opening window for newbuilds and renovations

The Schüco AWS 70 SC (Slimline Casement) outward-opening window system delivers both high quality and economic efficiency. It provides the full ‘build quality’ for which Schüco is renowned and is the perfect solution for new and replacement windows in both newbuild and renovation projects.

A variety of different application are possible with this system, which can be used in punched openings, ribbon windows and curtain walling. It therefore provides a wide range of unique features and impressive benefits to meet any requirement.


  • Cost-effective, high-quality solution
  • Slimline appearance for maximum transparency
  • Five different profiles offering optimum cost/size/weight options
  • Security rating up to PAS 24
  • Excellent thermal insulation
  • Window Energy Rating up to ‘A’

Properties:

  • Maximum Size Side Hung: 650mm wide x 1200mm high
  • Maximum Size Top Hung: 1200mm wide x 1000mm high
  • Maximum panel weight: Side Hung Window 30kg, Top Hung Window 50kg



Energy:

  • Uw value = 1.4 W/(m²K)
  • BFRC Window Energy Rating up to level “A”



Performance:

    • Air Permeability Class 4 to EN12207
    Water Resistance 9A to EN12208
  • Resistance to Wind Load B5 to EN12210



Design:

  • Very narrow face widths: fixed light from 38 mm, opening unit from 63.5 mm
  • Wide variety of profile and design options: from narrow vents with internal glazing to external glazing through to internally-glazed heavy-duty vents
  • Fittings for chamber size of 14 mm and 17 mm
  • Locking points on all sides with Schüco locking bar groove optional
  • Compatible with Schüco Door ADS modular system



Security:

  • PAS 24: tested in 2012



Glazing:

  • 4mm toughened outer / 20mm argon filled cavity / 4mm toughened inner with low e coating
  • Available in double or triple glazing option
  • Glass thickness: 25-34mm

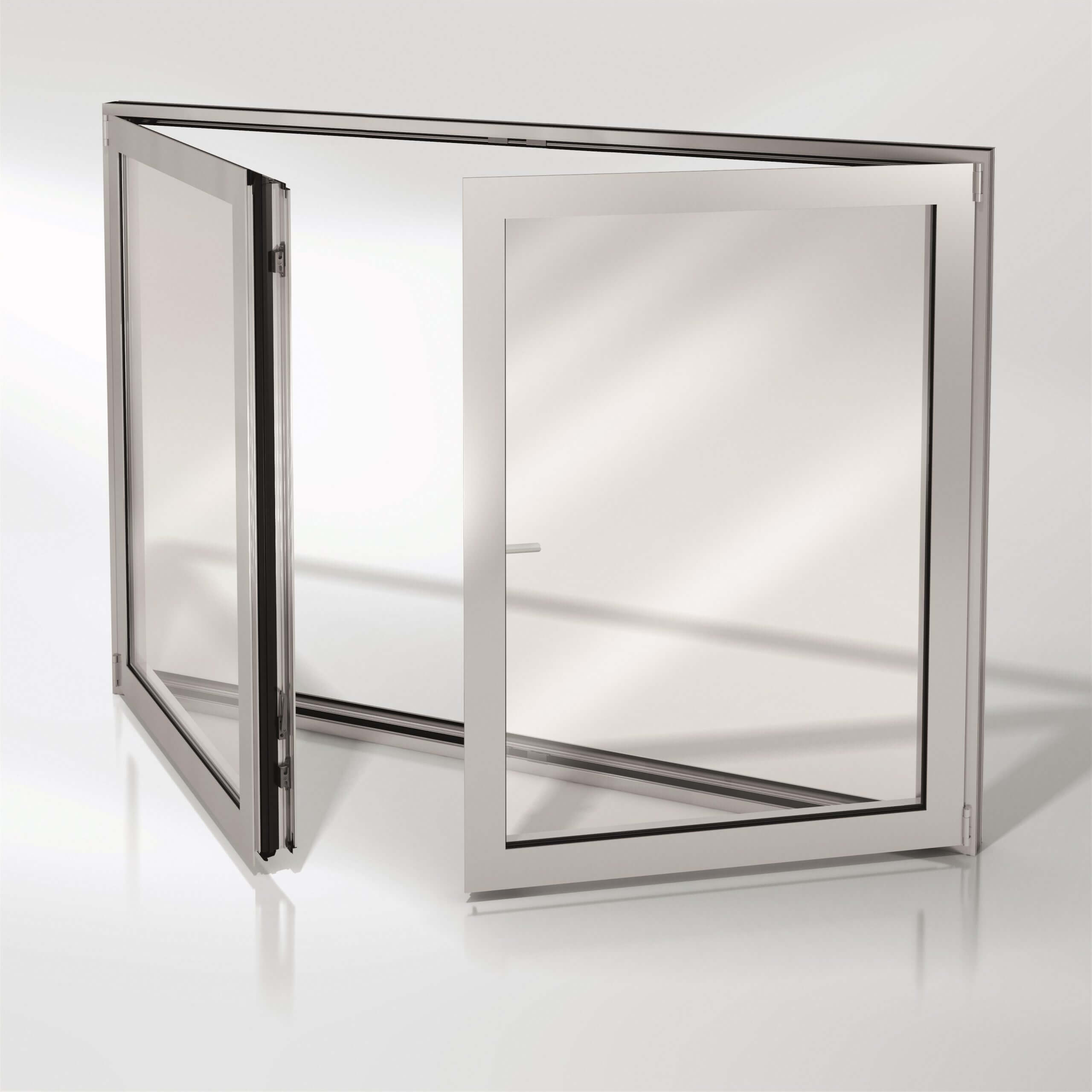

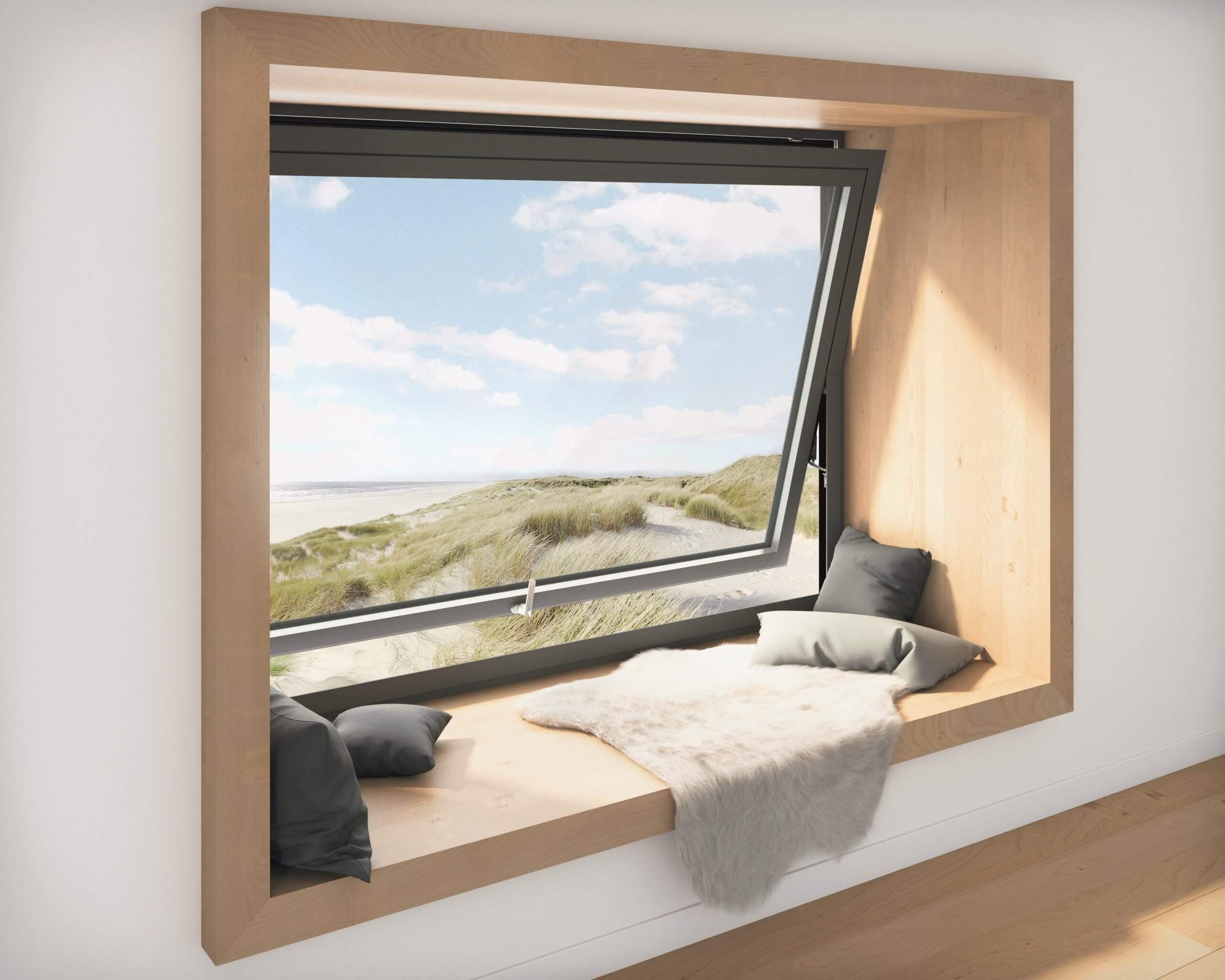

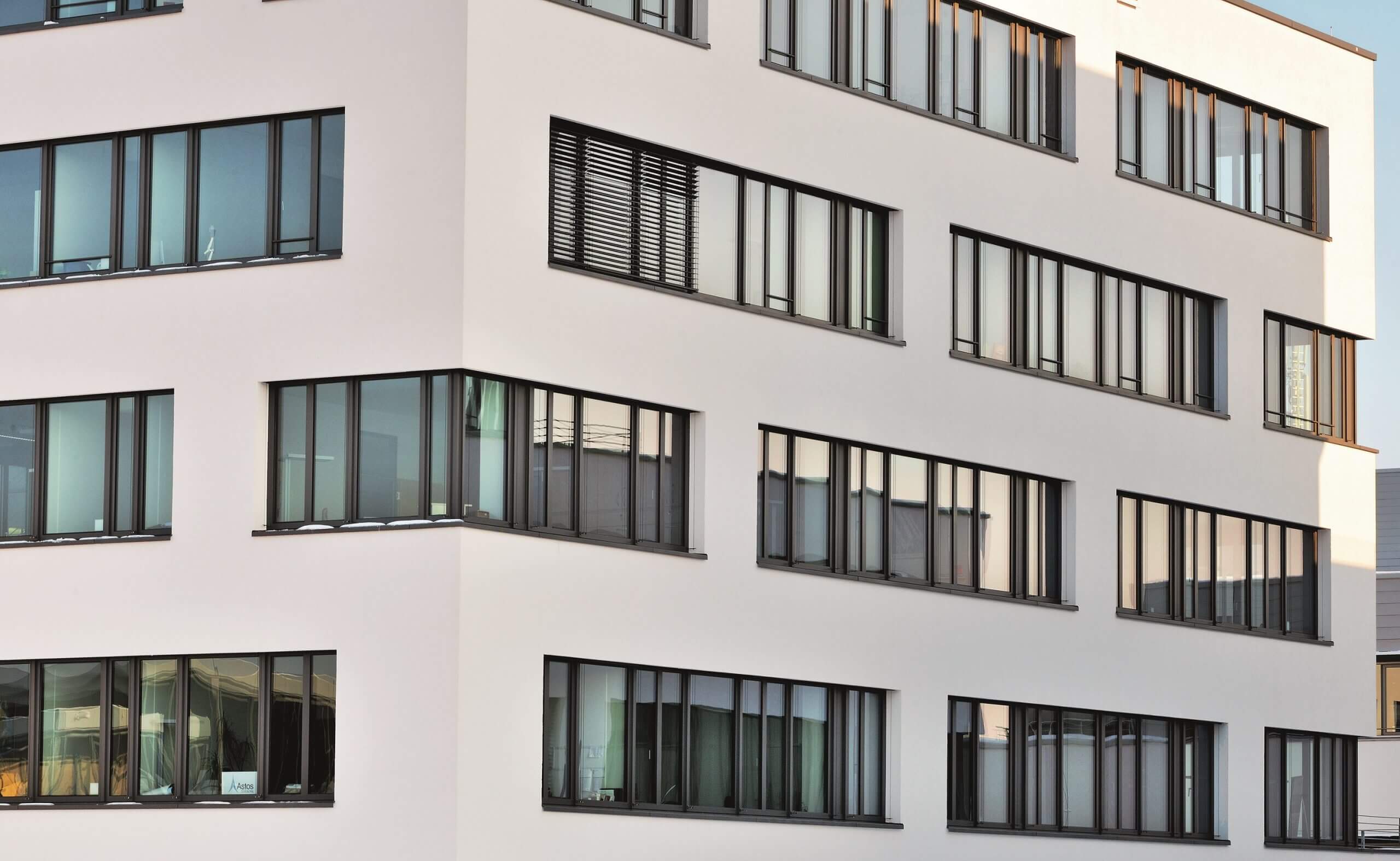

Examples of Schüco AWS 70 SC

With Schüco, you can design your home to suit all your requirements, whether that is comfort, security or energy efficiency. Standard windows offer many different design options, with a range of shapes, colours and surface finishes.

Schüco AWS 90.SI+

Maximum thermal insulation



The Schüco AWS 90.SI+ (Super Insulation) aluminium window is a highly thermally insulated window to passive house level.

  • Unique thermal insulation: Uf value = 0.71 W/(m2K)
  • Burglar resistance to RC 3
  • Minimal face width of 99 mm

Construction depth of the profile – 90 mm
Uf value – from 0,71 W/( m²K) possible
Uw = 0,8 W/(m²K), with Ug = 0,5 W/(m²K) and plastic spacer
Coextruded middle gasket with fins
An insulation zone with innovative foam-filled insulating bars
Excellent noise insulation values up to 47 dB
Driving rain impermeability – Class 9A
Wind load capacity – Class C5/B5
Air permeability – Class 4
Anti-burglary protection – up to class  RC 3
Infill blind frames with adapter seal for glass thickness balance
Inside positioned invisible fittings  AvantTec
Schüco TipTronic fittings up to 160 kg
A wide range of profiles for multiple solutions
Multicolour RAL profile design possible
Thickness of the aluminium profiles: 2.2 mm, face width of 117 mm
Perfectly suitable for the use of inserted panels also in highly heat insulated façades
Aluminium window handles are included in the price; stainless steel handles are optional
Compatible with door series Schüco ADS 90.SI/ ADS 90 PL.SI

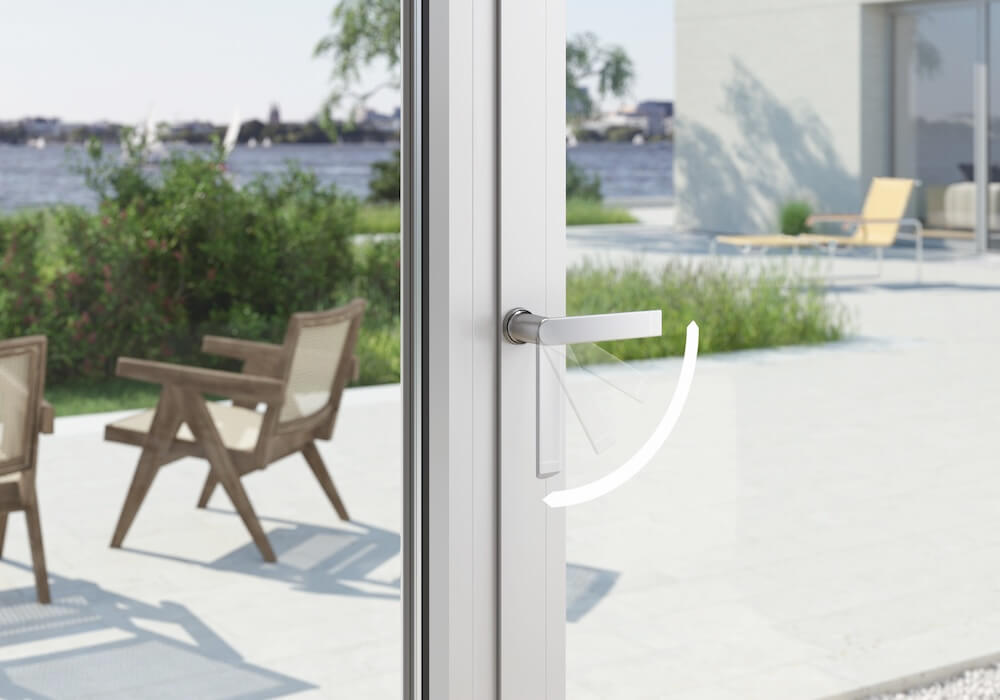

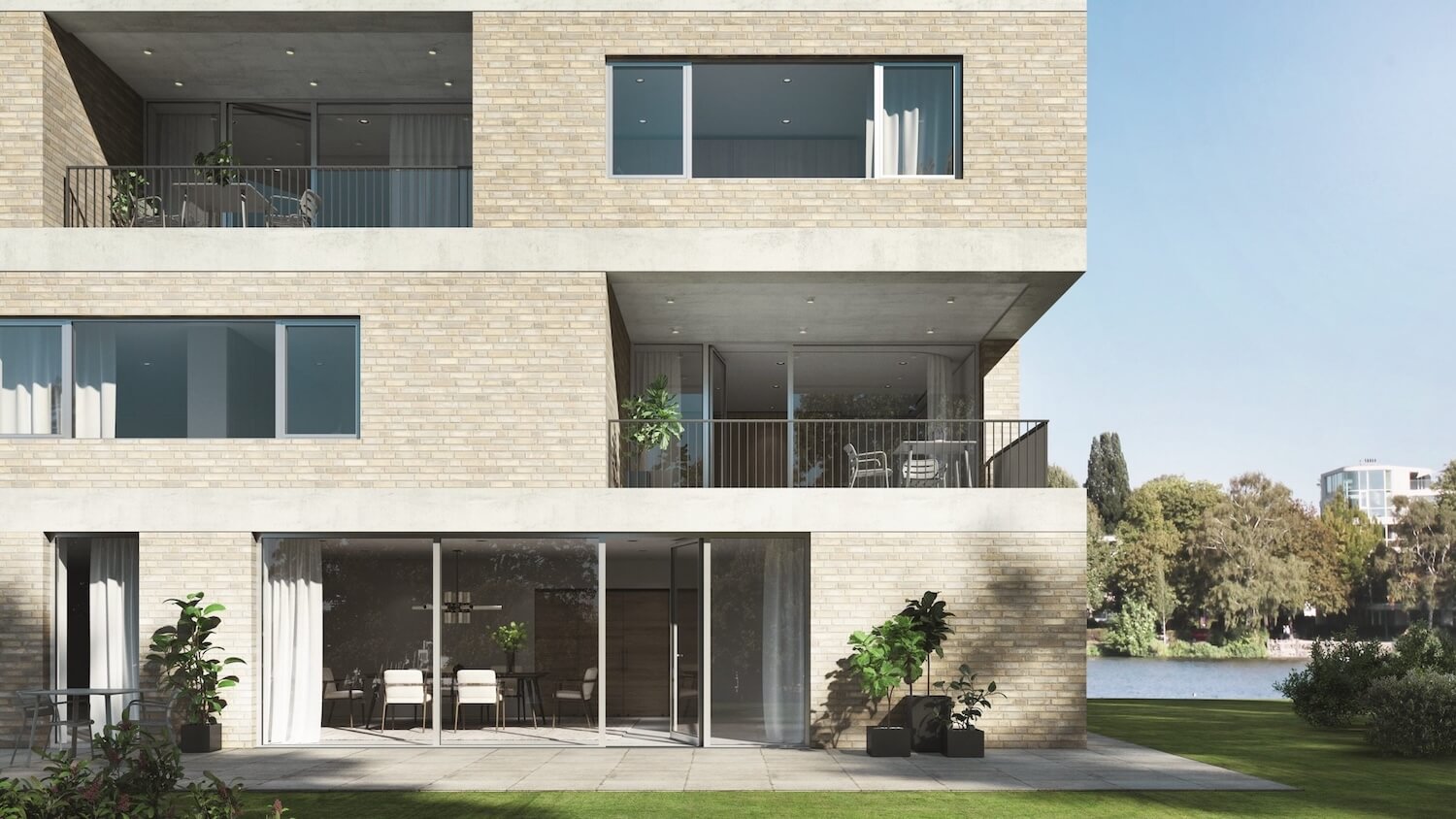

Examples of Schüco AWS 90.SI+

Extensive versatility throughout the property

Schüco AWS 75.SI+

Schüco AWS optimized window system: a comprehensive, high-performance window system for sustainable buildings

The Schüco AWS 75.SI+ optimized (Super Insulated) window system for the 75 mm basic depth is part of the Schüco AWS system platform and allows high energy efficiency and architectural requirements to be fulfilled through its future-oriented, optimised U values.

The window system has been passive house-certified from a face width of 178 mm by the PHI Darmstadt.

Thanks to newly developed thermal insulation technology, our optimised systems achieve a high level of energy efficiency. This significantly improves the thermal performance values compared to the AWS standard system.

AWS 75.SI+optimized is a comprehensive and high-performance vent and frame system with numerous solutions.

Min. face width – 59 mm
Uf value of frame –  (≥)0,94 W/(m²·K)
Max. glass/panel thickness – 57 mm
Max. vent width – 1700 mm
Max. vent height – 2500 mm
Max. sound reduction index – Rwp48 dB(A)
Air permeability – Class 4
Watertightness – Class 9A
Burglar resistance – Up to RC3
Wind load resistance – Class C5 / B5
CE marking – Yes
Total basic depth – 85 mm
Width of vent frame – 85 mm
Max. vent weight – 200 kg
Min.-max. vent height – 540…2500 mm
Min.-max. vent width – 450…1700 mm
Outer frame face width – 59 mm
Vent frame face width – 48 mm
Max. face width of mullion – 250 mm
Min.-max. face width of mullion – 84…250 mm
Max. face width of meeting stile – 203 mm
Min.-max. face width of meeting stile – 148…203 mm
Min.-max. glass/panel thickness – 14…57 mm
Barrier-free (≤) 20 mm – No
Area of application – External use, Residential projects, Commercial projects, Window, Healthcare, Education, Accommodation facilities, Industrial buildings
Concealed fittings system – Yes
Surface finishes – RAL, Powder, Anodised, Paint, Duraflon, Decorative foils
Glass composition – Triple glazing
Toplight – Yes
Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Tilt-before-turn, Fixed light
Opening angle – 180 °
Impact resistance – Klasse 2
Mechanical strength – Class 4
Proof of durability – Class 3
Corrosion protection class for fittings – Class 5
Ug value of glass –  (≤)0.5 W/(m²·K)
Drainage levels – 3
Schüco sun shading possible – Yes
Security glazing – Yes
Suitable for safety barrier loading – Yes
Electronic monitoring – Yes
Certificates – Passive house certificate
Passive house class – phC

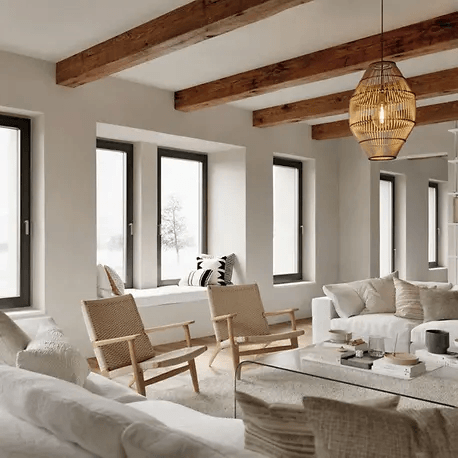

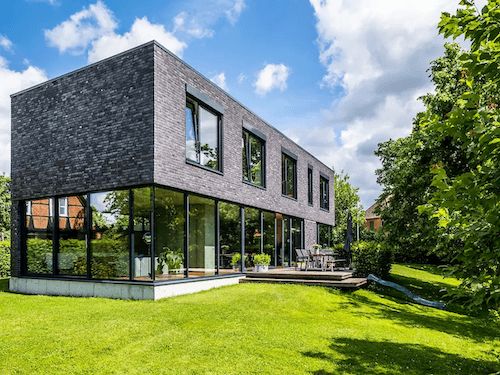

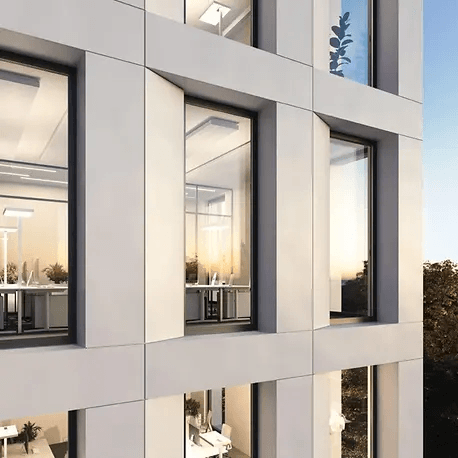

Examples of Schüco Window System AWS 75.SI+ optimized

With the performance characteristics of the “optimized” product series, we are ideally equipped for the diverse structural and architectural requirements of sustainable building
