Reynaers sliding and folding doors

MasterPatio

Crafted by masters

MasterPatio is the sliding system of choice for all our partners and customers. Superior insulation and recycled components make this premium aluminium solution an ideal sustainability upgrade for any building project.

  • Standard high-insulating system with high-rise ready performances.
  • Sustainable through recycled materials and reduced waste during production.
  • Compatible with our MasterLine 8 system, converting it into an easy to produce floor-to-ceiling facade.

Performance

Energy

Thermal insulation – Uw – 0.8 W/m²K



Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E1200 (1200Pa)
Wind load resistance – Class C5 (2000Pa)
Acoustics – Rw(C;Ctr) 44(-1;-4) dB
Opening & closing resistance –  Class 4


Safety

Burglar resistance – PAS 24 RC2
Impact resistance – I4

Properties

Max. dimensions & weight

Min. height of vent – 1800 mm
Max. height of vent – 3600 mm
Min. width of vent – 700 mm
Max. width of vent – 3000 mm
Max. weight of vent – 500 kg
Max. weight of fixed part – 1200 kg


Sightlines

Min. width 4-pane – 181 mm
Min. width meeting section – 50 mm
Min. width T-profile – 50 mm
Min. height treshold  – 4 mm
Depth Vent – 77 mm
Depth frame-vent – 180 mm
Depth frame monorail – 180 mm
Depth frame 2-rail – 180 mm
Depth frame 3-rail – 283 mm


Glazing

Rebate height – 27 mm
Glazing method – Dry glazing, Siliconized glazing,  Internal glazing, External glazing, Glazing bead
Min. glass thickness – vent – 16 mm
Max. glass thickness – vent – 62 mm

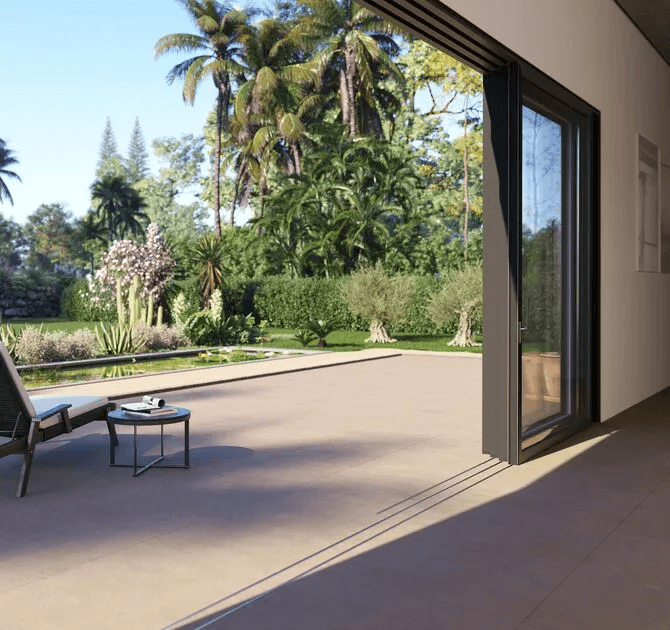

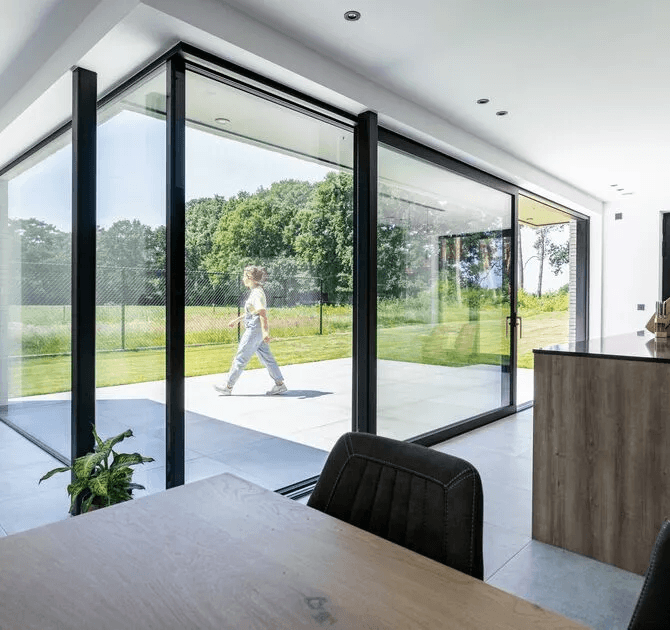

Examples of Reynaers Master Patio sliding doors

HiFinity

The infinite view

HiFinity’s ultra-slim profiles create seemingly endless transparent surfaces with a minimalist look. The elegant aluminium sliding system combines an infinite view with impressive performances. The perfect choice for any low-energy contemporary building.

  • Ultimate design freedom, matching each project requirement
  • Floor-to-ceiling and wall-to-wall fully concealed profiles
  • Elegant lines and an unobstructed view

Performance

Energy

Thermal insulation – Uw – 0.8 W/m²K



Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E750 (750Pa)
Wind load resistance – Class C5 (2000Pa)
Acoustics – Rw(C;Ctr) 46(-1;-3) dB
Opening & closing resistance – Class 3


Safety

Burglar resistance – PAS 24 RC2


Properties

Max. dimensions & weight

Min. height of vent – 1800 mm
Max. height of vent – 4000 mm
Min. width of vent – 1000 mm
Max. width of vent – 3500 mm
Max. weight of vent – 750 kg
Max. weight of fixed part – 1200 kg


Sightlines

Min. width 4-pane – 67 mm
Min. width meeting section – 35 mm
Min. width T-profile – 35 mm
Min. visible width (interior view) – 8 mm
Min. visible width (exterior view) – 8 mm
Min. height treshold – 0 mm
Depth Vent – 44 mm
Depth frame-vent – 148 mm
Depth frame 2-rail – 148 mm
Depth frame 3-rail – 236 mm
Depth frame 4-rail – 325 mm


Glazing

Rebate height – 17 mm
Glazing method – Envelope glazing, Structural Glued Glazing
Min. glass thickness – vent – 36 mm
Max. glass thickness – vent – 54 mm

Examples of Reynaers HiFinity sliding doors

ConceptFolding 77

Invite nature into your building

ConceptFolding 77 provides exceptional element sizes for maximal transparency and stunning aesthetics. Nature and indoors come closer together as the aluminium folding door system connects up to eight vents to draw the exterior inside.

  • High-quality folding doors
  •  Best in class element sizes
  •  From 2 to 8 vents, opening any way you want

Performance

Energy

Thermal insulation – Uf  – 2.2 W/m²K

Thermal insulation – Uw  – 1.3 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class 9A (600Pa)
Wind load resistance – Class C3 (1200Pa)
Acoustics – Rw(C;Ctr) 45(-1;-5) dB
Opening & closing resistance – Class 3


Safety

Burglar resistance – PAS 24 RC2


Properties

Max. dimensions & weight

Min. height of vent – 600 mm
Max. height of vent – 3000 mm
Min. width of vent – 400 mm
Max. width of vent – 1200 mm
Max. weight of vent – 120 kg


Sightlines

Min. width meeting section – 122 mm
Min. width T-profile – 48 mm
Min. height treshold – 5 mm
Depth frame  – 77 mm
Depth Vent – 77 mm
Depth frame-vent – 77 mm


Glazing

Rebate height – 25 mm
Glazing method – Dry glazing, Siliconized glazing, Internal glazing, Glazing bead
Min. glass thickness – vent – 6 mm
Max. glass thickness – vent – 63 mm

Examples of Reynaers ConceptFolding 77 folding doors

ConceptPatio 130

Aesthetic functionality

ConceptPatio 130 is a qualitative (lift &) slide solution that balances price, performance and design. The versatile aluminium system allows both architects and homeowners to create spaces without boundaries.

  • Very complete offer with various opening types.
  •  Excellent balance between performance and affordability
  •  Unique low threshold renovation-friendly profile

Performance

Energy

Thermal insulation – Uw – 1.4 W/m²K


Comfort

Air tightness –  Class 4 (600Pa)
Water tightness – Class E750 (750Pa)
Wind load resistance – Class B5 (2000Pa)
Acoustics – Rw(C;Ctr) 39(-1;-3) dB
Opening & closing resistance –  Class 4


Safety

Burglar resistance PAS 24 RC2
Impact resistance – I5/E5

Properties

Max. dimensions & weight

Min. height of vent – 500 mm

Max. height of vent – 2700 mm
Min. width of vent – 700 mm
Max. width of vent – 2700 mm
Max. weight of vent – 300 kg
Max. weight of fixed part – 300 kg


Sightlines

Min. width 4-pane – 194 mm
Min. width meeting section – 50 mm
Min. width T-profile – 50 mm
Min. height treshold – 4 mm
Depth Vent – 59 mm
Depth frame-vent – 139 mm
Depth frame monorail – 130 mm
Depth frame 2-rail – 130 mm
Depth frame 3-rail – 210 mm


Glazing

Rebate height – 25 mm
Glazing method – Dry glazing, Siliconized glazing, Internal glazing, External glazing, Glazing bead, Structural Glued Glazing
Min. glass thickness – vent – 4 mm
Max. glass thickness – vent – 43 mm

Examples of Reynaers ConceptPatio 130 sliding doors

ConceptPatio 155

Sophistication for quality and insulation

ConceptPatio 155 is a high-quality (lift &) slide system enables large glass areas with excellent insulating properties. Easy to integrate, the all-round aluminium sliding doors neatly combine with the ConceptSystem 77 products.

  • Enables large elements in a variety of opening types.
  •  Burglarproof and even hurricaneproof variants available
  •  Fixed glass panels up to 1500kg

Performance

Energy

Thermal insulation – Uw – 0.99 W/m²K


Comfort

Air tightness – Class 4 (600Pa)
Water tightness – Class E900 (900Pa)
Wind load resistance – Class C4 (1600Pa)
Acoustics – Rw(C;Ctr) 42(-1;-3) dB
Opening & closing resistance – Class 4


Safety

Burglar resistance – PAS 24 RC2
Impact resistance – I5/E5

Properties

Max. dimensions & weight

Min. height of vent – 500 mm

Max. height of vent – 3500 mm
Min. width of vent – 700 mm
Max. width of vent – 2700 mm
Max. weight of vent – 400 kg
Max. weight of fixed part – 1500 kg


Sightlines

Min. width 4-pane – 210 mm
Min. width meeting section – 50 mm
Min. width T-profile – 50 mm
Min. height treshold – 4 mm
Depth Vent – 68 mm
Depth frame-vent – 155 mm
Depth frame monorail – 155 mm
Depth frame 2-rail – 155 mm
Depth frame 3-rail – 242 mm


Glazing

Rebate height – 25 mm
Glazing method  – Dry glazing, Siliconized glazing, Internal glazing, External glazing, Glazing bead, Structural Glued Glazing
Min. glass thickness – vent – 4 mm
Max. glass thickness – vent – 52 mm

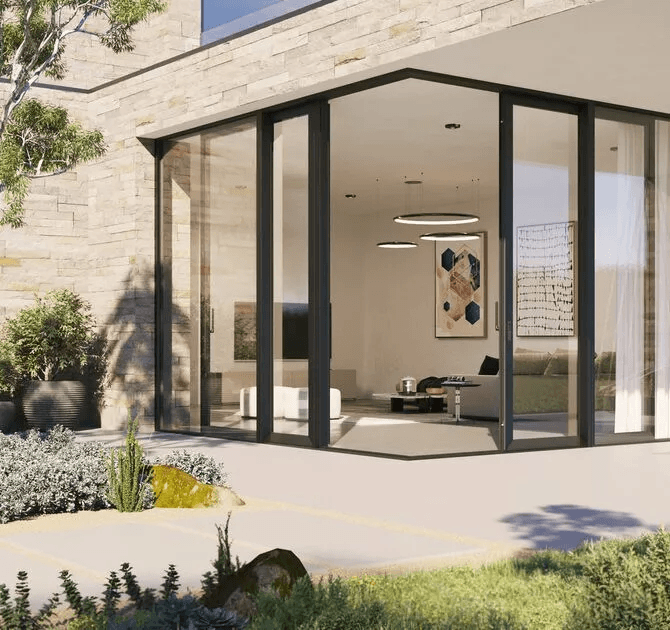

Examples of Reynaers ConceptPatio 155 sliding doors

More about Reynaers sliding and folding doors

Sliding doors improve the design and accessibility of any building type. With large easy-to-operate glazed surfaces, you can bring sunlight inside and create open spaces in an instance. Specific sliding solutions such as open corners, high-insulation systems, integrated flyscreens and motorised variants improve your daily comfort even more.

Product options

You can personalize Reynaers doors with the following options:

  • Slim Chicane – Increasing the transparency of the window where it is most visible.
  • Low Threshold – Easy access, cleaner look.
  • Zero Threshold – Entrance without boundaries, even with continuous flooring.
  • Access Control – Making your home smart and connected.
  • Motorised – Comfortable to use, even remotely.
  • Softclose – Combines safety and comfort.
  • Gutter – Better water performance, without adding thresholds.
  • Concealed Drainage – No more plastic cover caps, enjoy those clean lines.
  • Flyscreen – Enjoy cool summer evenings, without losing sleep.
  • Balustrade – Safety can equal beauty.
