Schüco doors

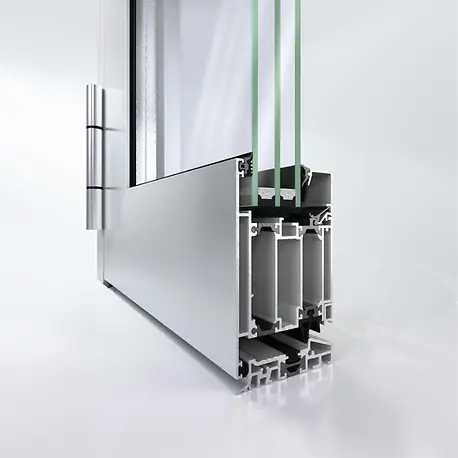

Schüco Door System AD UP 75

For today. For tomorrow. For buildings with a bright future.

Entrance doors in particular must have a barrier-free design in order to allow those with motor disabilities to enter buildings independently.

Excellent insulation properties combined with high stability – the Schüco AD UP 75 door system with a 75 mm basic depth offers high functional reliability for all requirements in luxury residential and commercial buildings.

With its groundbreaking construction principle and modular gasket system, the system sets new standards in thermal insulation, weathertightness, load-bearing capacity and durability for aluminium door systems. With a broad portfolio of fittings and design options, it allows stylish door solutions which meet every requirement for all areas of life and work. The door system is perfect for integration with door communication and access control systems.

Barrier-free requirements can also be met effectively and reliably for single and double-leaf doors thanks to the barrier-free, zero-level threshold in accordance with DIN 18040.

  • Triple-shell profile composition ensures maximum stability and functional reliability
  • Excellent thermal insulation
  • Modular gasket system for optimal adaptation to required system properties, e.g. the best performance values in watertightness
  • Mechanical durability tests up to 1 million cycles ensure a long service life and a high load-bearing capacity
  • Range of vent types, concealed hinges in combination with door communication and access control for high degree of planning freedom
  • Barrel hinge for large leaf heights
  • Proven system security and comfort
Uf value of frame (≥) – 1.4 W/(m²·K)
Max. height – 3000 mm
Max. width – 1400 mm
Max. glass/panel thickness – 53 mm
Max. vent weight – 200 kg
Area of application – Residential projects, Commercial projects
Surface finishes – RAL, Anodised
Air permeability – Class 4
Watertightness – E 750​
Wind load resistance – Class C3 / B3
Burglar resistance – Up to RC3
Impact resistance – Class 1
Min.-max. height – 0…3000 mm
Min.-max. width – 0…1400 mm
Min. face width151 mm
Min.-max. glass/panel thickness – 13…53 mm
Barrier-free (≤) 20 mm – Yes
Zero-level threshold – Yes
Thick door leaf – 75 mm
Type of design – Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in façade
Vent option – All around, Sill rail profile, Adjustable sill, Flush-fitted, Inward opening, Outward-opening, Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Infill type – Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, Automatic door gasket, Flat door threshold, Easy-access door threshold
Special applicationsAnti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Fitting materialAluminium, Stainless steel
Concealed fittings system – Yes
Neutral-colour fitting – Yes
Fittings installation – Surface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikes – Yes
With panic function – Yes
Finger-trap protection – Yes
Opening type – Side-hung, Inward and outward, Single and double-vent
DIN direction – DIN LH / RH
Door swing – Flush-fitted
Mechanical strength – Class 3
Proof of durability – Class 7, Class 8
Behaviour between different climates – Class 2(d),2(e)
Max. sound reduction index Rwp – 42 dB(A)
Top / bottom door closers – Yes
Door closer type – Top closers
Certificates – RAL quality mark, cradle2cradle SILVER
CE marking – Yes

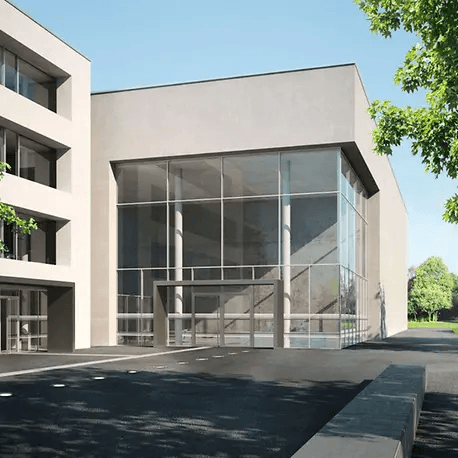

Examples of Schüco Door System AD UP 75

Schüco Door System AD UP Design Edition

Design door for the most demanding requirements in terms of aesthetics and function

High-quality design feature: fully profile-integrated aluminium door pull with indirect illumination

Design door for the most demanding requirements in terms of aesthetics and function

Function meets design – the Schüco AD UP Design Edition door system combines a high-quality appearance with convenience for users, for aluminium door solutions which meet any challenge.

The elegant flush pull grip with homogenous LED illumination gives an impression of grace, while the combination of leaf-enclosing door infills with a high-quality, flush-fitted appearance and the seamless integration of the design profile in the leaf fulfil the highest architectural requirements.

New to the system portfolio: design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices.

All door versions can be designed inward or outward-opening as desired.

Uf value of frame – (≥)1.4 W/(m²·K)
Max. height – 2500 mm
Max. width – 1250 mm
Max. glass/panel thickness – 90 mm
Max. vent weight – 160 kg
Area of application – Residential projects, Commercial projects
Air permeability – Class 4
Watertightness – Class 5A
Wind load resistance – Class C2 / B2
Burglar resistance – Up to RC 2
Min.-max. height – 0…2500 mm
Min.-max. width – 0…1250 mm
Min. face width – 170 mm
Min.-max. glass/panel thickness – 90…90 mm
Barrier-free  – (≤) 20 mmYes
Thick door leaf – 90 mm
Type of design – Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionFlush-fitted, Inward opening, Outward-opening
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, Automatic door gasket, Flat door threshold
Concealed fittings system – Yes
Neutral-colour fitting – Yes
Fittings installation – Surface-mounted door hinge, Concealed door hinge, Barrel hinge
Opening type – Side-hung, Inward and outward, Single and double-vent
DIN direction – DIN LH / RH
Door swing – Flush-fitted
Mechanical strength – Class 3
Proof of durability – Class 7, Class 8
Max. sound reduction index – Rwp42 dB(A)
Top / bottom door closers – Yes
Door closer type – Top closers
CE marking – Yes

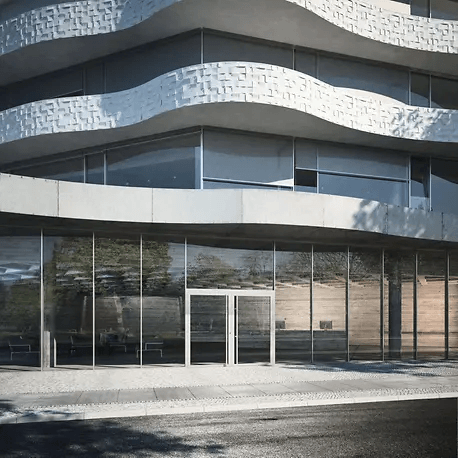

Examples of Schüco Barrier-free door systems

Schüco Door System AD UP 75 BL

For today. For tomorrow. For buildings with a bright future.

Triple-shell profile composition ensures maximum stability and functional reliability

Stable and highly flexible basic door system in 75 mm core basic depth

The Schüco AD UP 75 BL (Basic Line) door system is the basic option of the Schüco AD UP system platform for 75 mm basic depth.

The benefits for architects, developers and fabricators include high stability and durability as well as great functional and design freedom, combined with easy and reliable fabrication and installation.

The triple-shell profile construction with double insulation level and a rebate gasket system with two gasket levels ensure good thermal insulation and weathertightness properties, even without the additional use of insulating foam isolators and glazing rebate insulation.

Uf value of frame (≥) – 1.7 W/(m²·K)
Max. height – 3000 mm
Max. width – 1400 mm
Max. glass/panel thickness – 53 mm
Max. vent weight – 200 kg
Area of application – Residential projects, Commercial projects
Surface finishes – RAL, Anodised
Air permeability – Class 3
Watertightness – Class 7A
Wind load resistance – Class C2 / B2
Burglar resistance – Up to RC3
Impact resistance – Class 1
Min.-max. height – 0…3000 mm
Min.-max. width – 0…1400 mm
Min. face width – 151 mm
Min.-max. glass/panel thickness – 13…53 mm
Barrier-free (≤) 20 mm – Yes
Zero-level threshold – Yes
Thick door leaf – 75 mm
Type of design – Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in façade
Vent option – All around, Sill rail profile, Adjustable sill, Flush-fitted, Inward opening, Outward-opening, Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Infill type – Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door threshold – Aluminium, Automatic door gasket, Flat door threshold, Easy-access door threshold
Special applications – Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Fitting materialAluminium, Stainless steel
Concealed fittings system – Yes
Neutral-colour fitting – Yes
Fittings installation – Surface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikes – Yes
With panic function – Yes
Finger-trap protection – Yes
Opening type – Side-hung, Inward and outward, Single and double-vent
DIN direction – DIN LH / RH
Door swing – Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Mechanical strength – Class 3
Proof of durability – Class 7, Class 8
Behaviour between different climates – Class 2(d),2(e)
Max. sound reduction index Rwp – 42 dB(A)
Top / bottom door closers – Yes
Door closer type – Top closers
Certificates – RAL quality mark, cradle2cradle SILVER
CE marking – Yes

Examples of Schüco Door System AD UP 75
