Cortizo windows

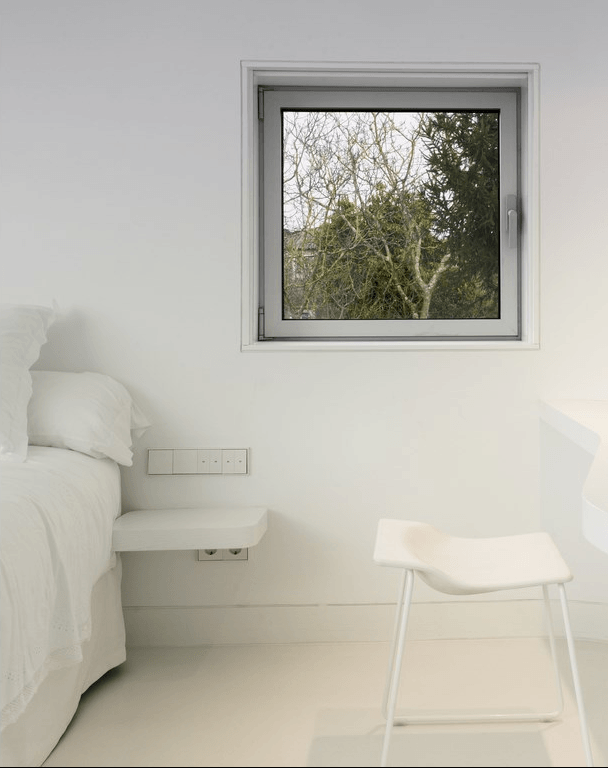

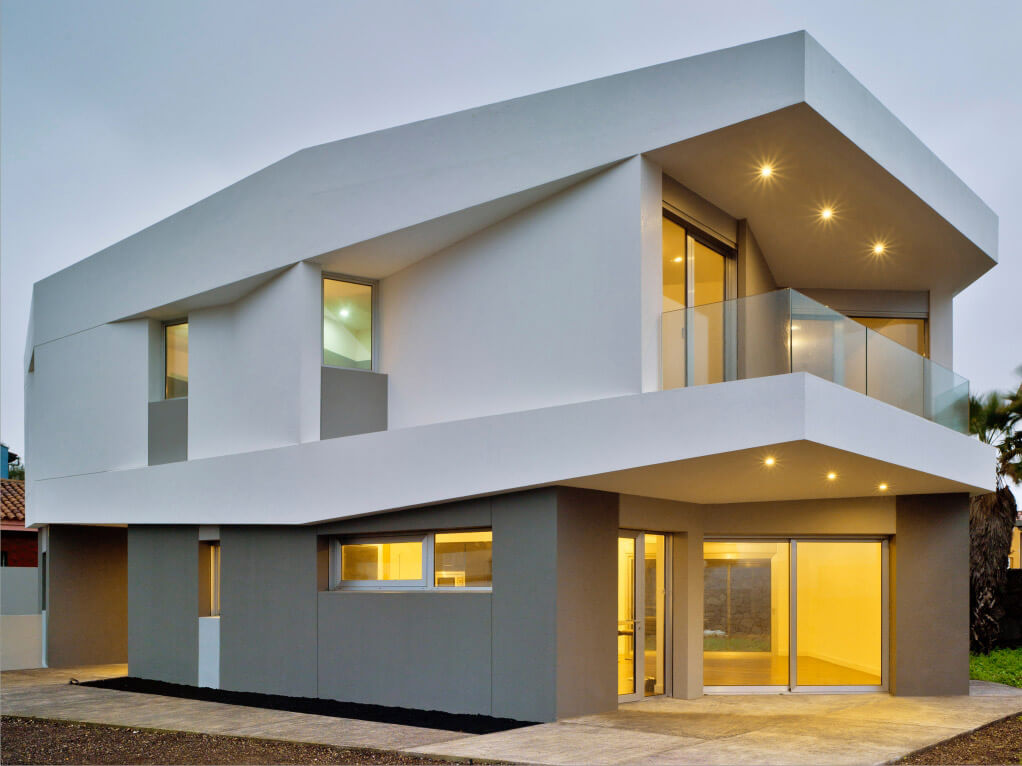

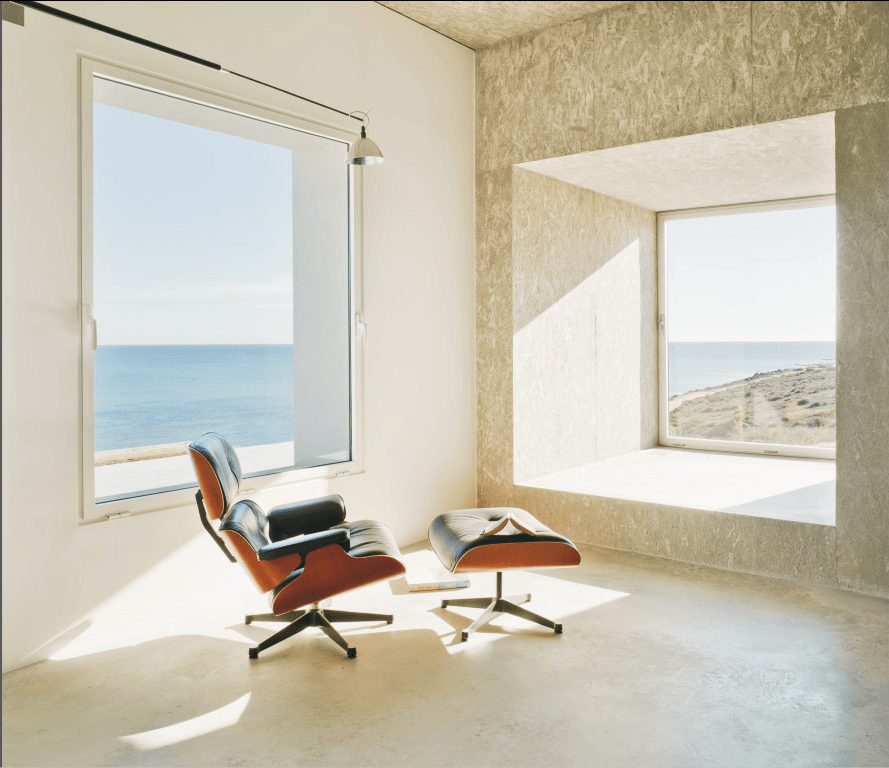

COR 80 Industrial Passivhaus TB
Certified for the warm-temperate category, this system offers exceptional thermal insulation thanks to its special foams on the frame and sash. With a transmittance value Uw from just 0.66 W/m²K, it is an ideal solution for buildings with low energy consumption.
Possibilities
- Security hardware
- Concealed hinges
Glazing
Max. 65 mm
Min. 25 mm
Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt & parallel
Tilt only
Sightlines
Frame 80 mm
Sash 88 mm
Profile thickness
1.6 mm
Polyamide strip length
45 mm
Maximum sash dimensions
Width (L) 1,00 mm
Height (H) 2,600 mm
Maximum sash weight
160 kg
Aesthetic possibilities
Sash: Straight / Bead: Straight or curved
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
»Transmittance
Uw ≥ 0.66 (W/m2K)
Consult maximum weight and dimensions according to typologies
Acoustic insulation
Rw up to 46 dB
Air permeability
(EN 12207) Class 4
Water tightness
(EN 12208) Class E1950
Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes

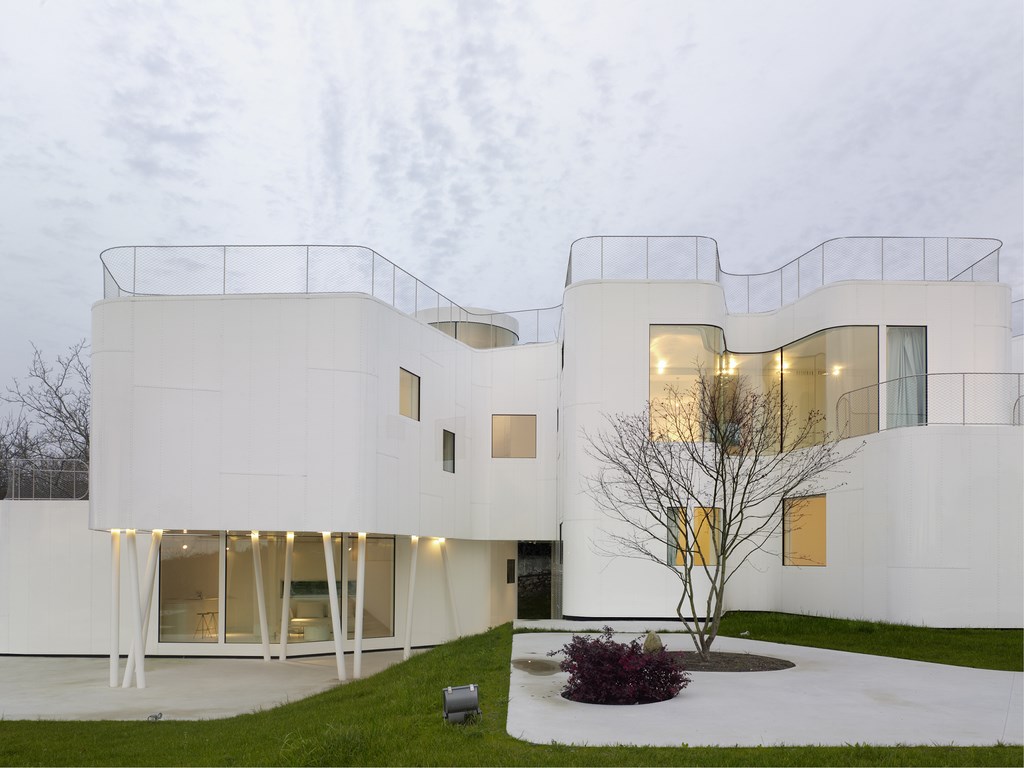

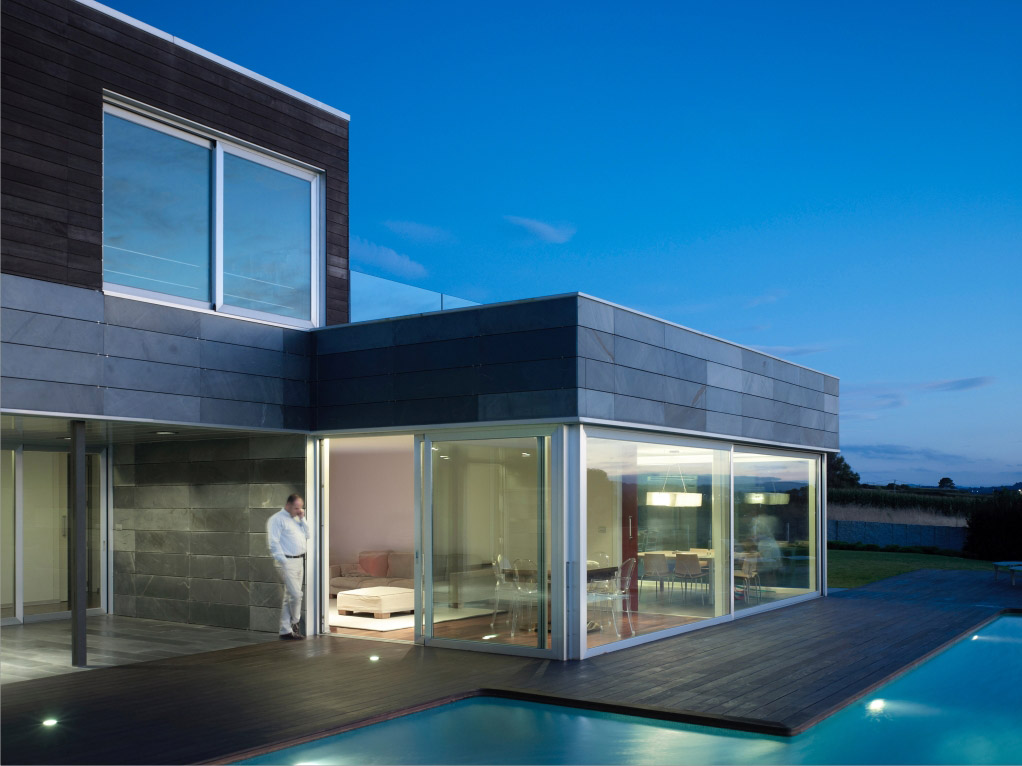

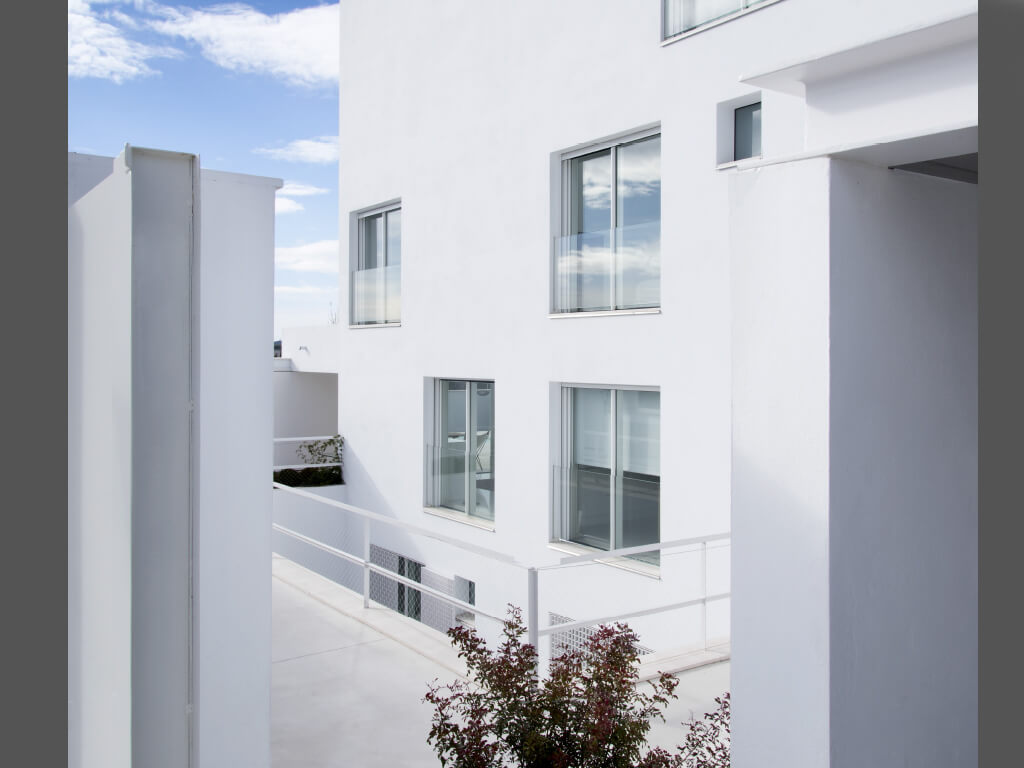

COR 60 Hidden Sash TB
Minimalism for avant-garde projects. It has an interlock profile of only 63 mm, COR 60 Hidden Sash is presented as a hinged system that allows for more glazed surface.
Possibilities
- Security hardware
- Concealed hinges
Glazing
Max. 34 mm
Min. 16 mm
Opening possibilities
Inward opening
Side hung
Tilt & turn
Bottom hung
Sightlines
Frame 60 mm
Sash 60 mm
Profile thickness
Window 1.6 mm
Balcony 1.6 mm
Polyamide strip length
24 mm
Maximum sash dimensions
Width (L) 1,300 mm
Height (H) 2,400 mm
Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
Transmittance
Uw ≥ 1.5 (W/m2K)
Consult maximum weight and dimensions according to typologies
Acoustic insulation
Rw up to 41 dB
Air permeability
(EN 12207) Class 4
Water tightness
(EN 12208) Class 9A
Wind resistance
(EN 12210) Class C5
Reference test 1.20 x 1.16 m / 1 sash

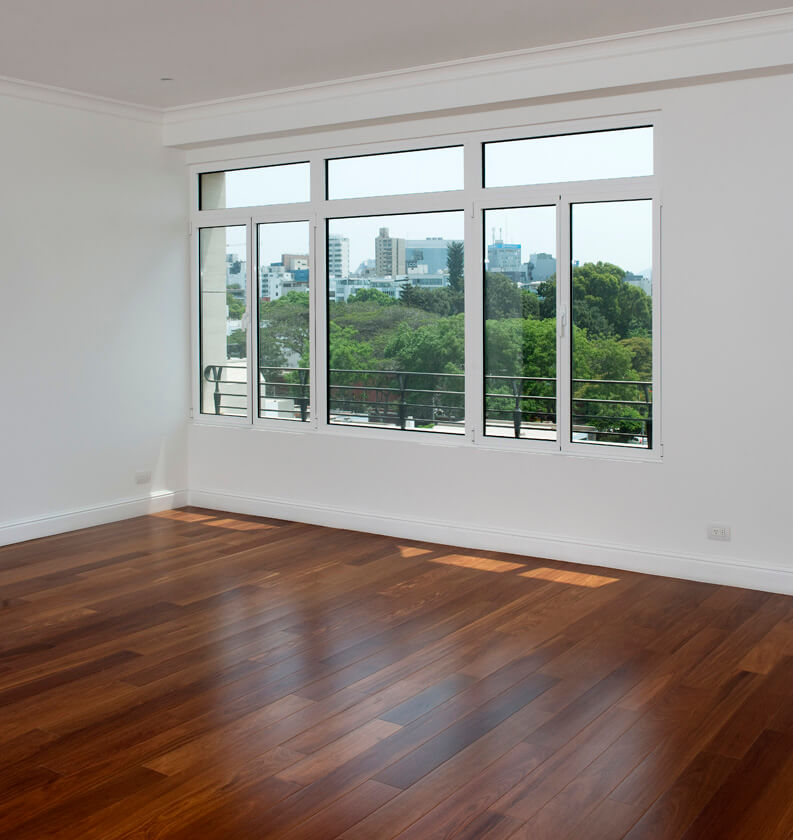

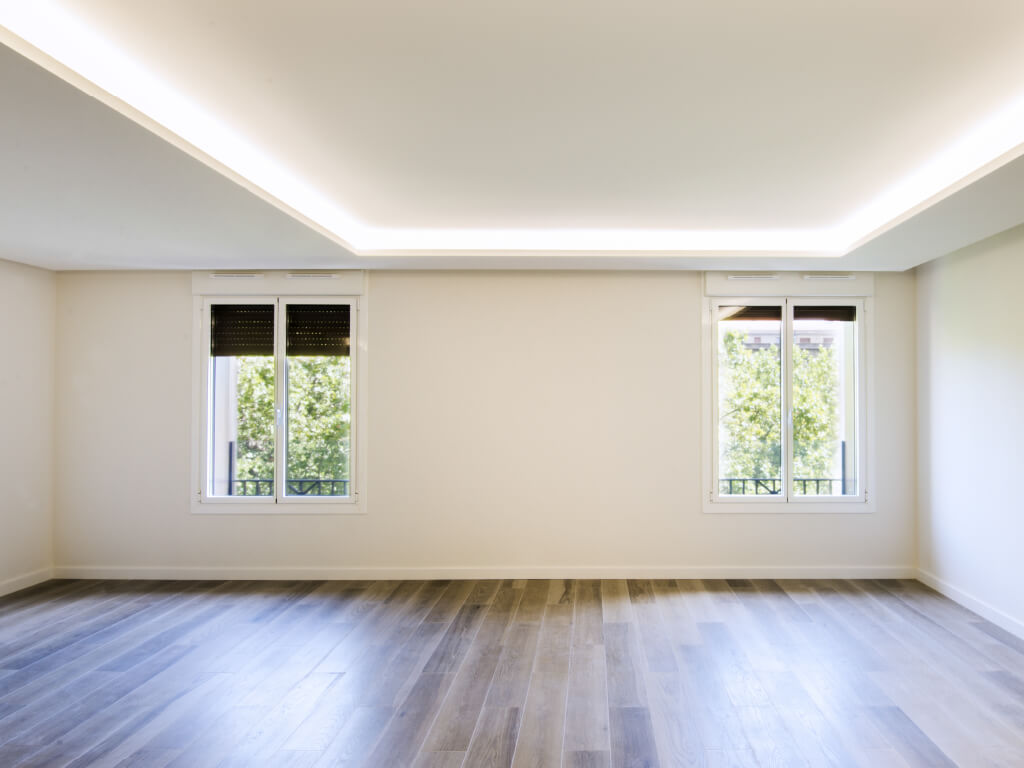

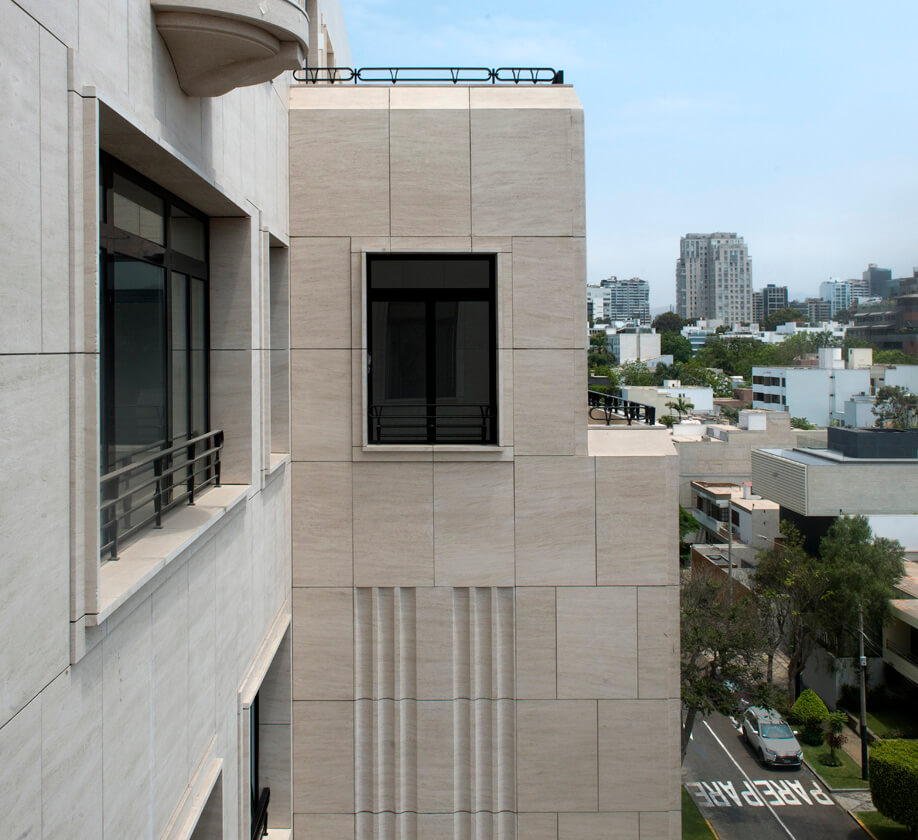

COR 70 Evolution TB
Hinged system with groove 16 destined for the industrial production of windows, doors and balconies. In order to reduce the manufacturing period, this new series offers the possibility of using pre-assembled gaskets, assembling cleats and a central floating mullion with a two piece hidden sash, which allows the glazing of double-sash windows on site. COR 70 Evolution is presented in a version of hidden or half-hidden sash with monoblock frames, in straight cut or perimetral, aiming at facilitating the on-site installation.
Possibilities
- Security hardware
- Concealed hinges
- Concealed handle
Glazing
Hidden sash 36 mm
Half hidden sash 63 mm
Opening possibilities
Inward Opening
Side hung
Tilt & turn
Tilt only
Sightlines
Hidden sash
Frame 70 – 232 mm
Sash 72,5 – 80,5 mm
Half hidden sash
Frame 70 – 232 mm
Sash 80,5 – 88,5 mm
Maximum Sash Dimensions
Hidden sash
Width (L) 1300 mm
Height (H) 2400 mm
Half hidden sash
Width (L) 1500 mm
Height (H) 2600 mm
Maximum Sash Weight
150 Kg
Consult maximum weight and dimensions
according to typologies
Finishes
Possibility of bicolour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
Transmittance
Hidden sash – Uw ≥ 1,0 (W/m2K)
Half hidden sash – Uw ≥ 0,9 (W/m2K)
Acoustic insulation
Rw up to 43 dB
Air permeability
Class 4
Water tightness
Hidden sash – Class E1200
Half hidden Sash – Class E1500
Wind resistance
Class C5
Reference test 1.23 x 1.48 m / 2 sashes
